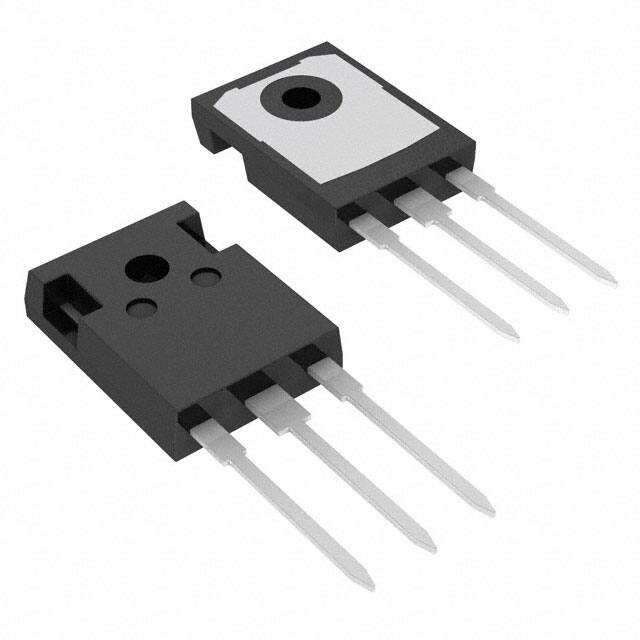

ON Semiconductor FGH60N60SMD
ON Semiconductor FGH60N60SMD thumbnail
ON Semiconductor FGH60N60SMD thumbnail
FREE SAMPLE

ON Semiconductor FGH60N60SMD

ON Semiconductor

Manufacturer No:

FGH60N60SMD

Manufacturer:

ON Semiconductor

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

IGBT 600V 120A 600W TO247

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 20

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
ON Semiconductor FGH60N60SMD information

Specifications
Documents & Media
Product Comparison
Related Products
ON Semiconductor FGH60N60SMD technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FGH60N60SMD.
ParameterValue
Factory Lead Time 5 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-247-3
Number of Pins 3
Weight 6.39g
Transistor Element Material SILICON
Collector-Emitter Breakdown Voltage 600V
Collector-Emitter Saturation Voltage 1.9V
Number of Elements 1
Test Conditions 400V, 60A, 3 u03a9, 15V
Turn Off Delay Time 146 ns
Operating Temperature -55u00b0C~175u00b0C TJ
Packaging Tube
Published 2013
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Additional Feature LOW CONDUCTION LOSS
HTS Code 8541.29.00.95
Max Power Dissipation 600W
Base Part Number FGH60N60
Rise Time-Max 70ns
Element Configuration Single
Case Connection COLLECTOR
Input Type Standard
Turn On Delay Time 27 ns
Power - Max 600W
Transistor Application POWER CONTROL
Polarity/Channel Type N-CHANNEL
Collector Emitter Voltage (VCEO) 600V
Max Collector Current 120A
Reverse Recovery Time 39 ns
JEDEC-95 Code TO-247AB
Turn On Time 59 ns
Vce(on) (Max) @ Vge, Ic 2.5V @ 15V, 60A
Turn Off Time-Nom (toff) 163 ns
IGBT Type Field Stop
Gate Charge 189nC
Current - Collector Pulsed (Icm) 180A
Td (on/off) @ 25u00b0C 18ns/104ns
Switching Energy 1.26mJ (on), 450u03bcJ (off)
Gate-Emitter Voltage-Max 20V
Gate-Emitter Thr Voltage-Max 6V
Fall Time-Max (tf) 68ns
Height 20.6mm
Length 15.6mm
Width 4.7mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
