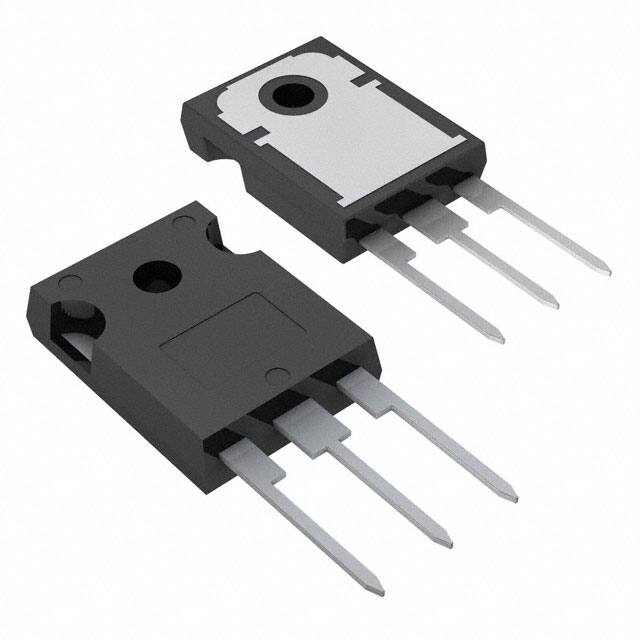

STMicroelectronics STGW20NC60VD
STMicroelectronics STGW20NC60VD thumbnail
STMicroelectronics STGW20NC60VD thumbnail
FREE SAMPLE

STMicroelectronics STGW20NC60VD

STMicroelectronics

Manufacturer No:

STGW20NC60VD

Manufacturer:

STMicroelectronics

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

STMICROELECTRONICS STGW20NC60VD IGBT Single Transistor, 60 A, 2.5 V, 200 W, 600 V, TO-247, 3 Pins

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 23070

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
STMicroelectronics STGW20NC60VD information

Specifications
Documents & Media
Product Comparison
Related Products
STMicroelectronics STGW20NC60VD technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STGW20NC60VD.
ParameterValue
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-247-3
Number of Pins 3
Weight 38.000013g
Transistor Element Material SILICON
Collector-Emitter Breakdown Voltage 600V
Collector-Emitter Saturation Voltage 2.5V
Number of Elements 1
Test Conditions 390V, 20A, 3.3 u03a9, 15V
Turn Off Delay Time 100 ns
Operating Temperature -55u00b0C~150u00b0C TJ
Packaging Tube
Series PowerMESHu2122
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Terminal Finish Tin (Sn)
Additional Feature ULTRA FAST
Voltage - Rated DC 600V
Max Power Dissipation 200W
Current Rating 30A
Base Part Number STGW20
Pin Count 3
Element Configuration Single
Power Dissipation 200W
Input Type Standard
Turn On Delay Time 31 ns
Transistor Application POWER CONTROL
Rise Time 11.5ns
Polarity/Channel Type N-CHANNEL
Collector Emitter Voltage (VCEO) 600V
Max Collector Current 60A
Reverse Recovery Time 44ns
Turn On Time 42.5 ns
Vce(on) (Max) @ Vge, Ic 2.5V @ 15V, 20A
Continuous Collector Current 30A
Turn Off Time-Nom (toff) 280 ns
Gate Charge 100nC
Current - Collector Pulsed (Icm) 150A
Td (on/off) @ 25u00b0C 31ns/100ns
Switching Energy 220u03bcJ (on), 330u03bcJ (off)
Gate-Emitter Voltage-Max 20V
Gate-Emitter Thr Voltage-Max 5.75V
Height 20.15mm
Length 15.75mm
Width 5.15mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
