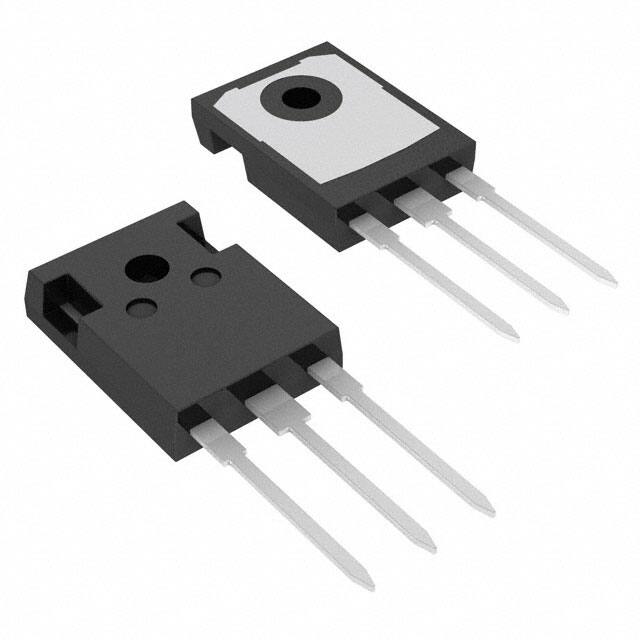

ON Semiconductor FGH40T120SMD

ON Semiconductor

Manufacturer No:

FGH40T120SMD

Manufacturer:

ON Semiconductor

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

Trans IGBT Chip N-CH 1.2KV 80A 3-Pin(3 Tab) TO-247 Rail

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 0

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

ON Semiconductor FGH40T120SMD information

Specifications

Documents & Media

Product Comparison

Related Products

ON Semiconductor FGH40T120SMD technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FGH40T120SMD.

Parameter	Value
Factory Lead Time	4 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-247-3
Number of Pins	3
Weight	6.39g
Collector-Emitter Breakdown Voltage	1.2kV
Collector-Emitter Saturation Voltage	1.8V
Test Conditions	600V, 40A, 10 u03a9, 15V
Turn Off Delay Time	475 ns
Operating Temperature	-55u00b0C~175u00b0C TJ
Packaging	Tube
Published	2013
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
HTS Code	8541.29.00.95
Max Power Dissipation	555W
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Element Configuration	Single
Power Dissipation	555W
Input Type	Standard
Turn On Delay Time	40 ns
Polarity/Channel Type	N-CHANNEL
Collector Emitter Voltage (VCEO)	1.2kV
Max Collector Current	80A
Reverse Recovery Time	65 ns
Voltage - Collector Emitter Breakdown (Max)	1200V
Vce(on) (Max) @ Vge, Ic	2.4V @ 15V, 40A
Max Junction Temperature (Tj)	175u00b0C
Continuous Collector Current	80A
IGBT Type	Trench Field Stop
Gate Charge	370nC
Current - Collector Pulsed (Icm)	160A
Td (on/off) @ 25u00b0C	40ns/475ns
Switching Energy	2.7mJ (on), 1.1mJ (off)
Gate-Emitter Voltage-Max	25V
Gate-Emitter Thr Voltage-Max	7.5V
Height	24.75mm
Length	15.87mm
Width	4.82mm
RoHS Status	ROHS3 Compliant
