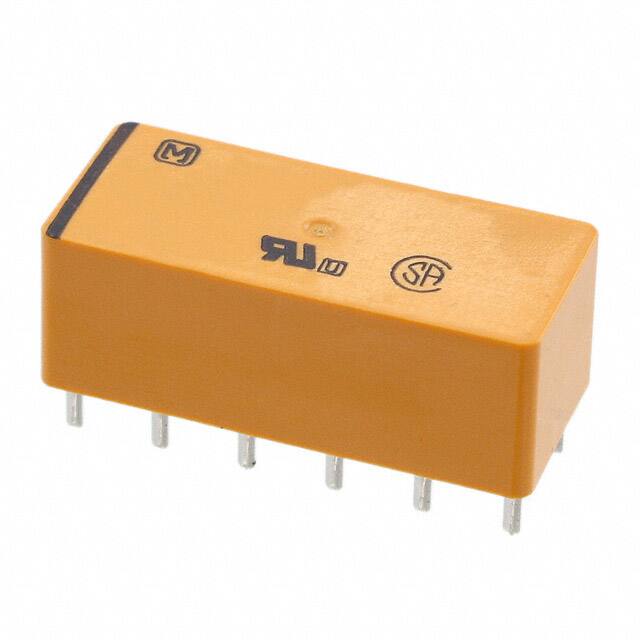

Panasonic Electric Works S4EB-24V
Panasonic Electric Works S4EB-24V thumbnail
Panasonic Electric Works S4EB-24V thumbnail
FREE SAMPLE

Panasonic Electric Works S4EB-24V

Panasonic Electric Works

Manufacturer No:

S4EB-24V

Manufacturer:

Panasonic Electric Works

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

RELAY GEN PURP SPST X 4 4A 24V

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 1000

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
