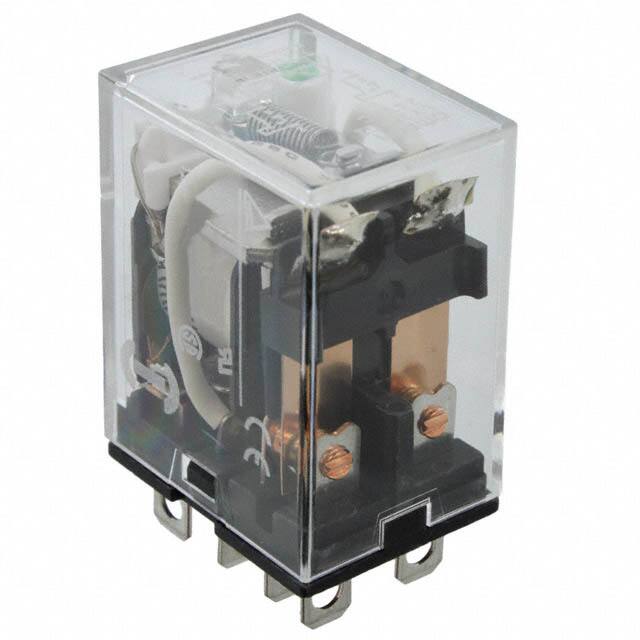

Omron Automation and Safety LY2N-D2-DC24
Omron Automation and Safety LY2N-D2-DC24 thumbnail
Omron Automation and Safety LY2N-D2-DC24 thumbnail
FREE SAMPLE

Omron Automation and Safety LY2N-D2-DC24

Omron Automation and Safety

Manufacturer No:

LY2N-D2-DC24

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

RELAY GEN PURPOSE DPDT 10A 24V

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 0

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Omron Automation and Safety LY2N-D2-DC24 information

Specifications
Documents & Media
Product Comparison
Related Products
Omron Automation and Safety LY2N-D2-DC24 technical specifications, attributes, parameters and parts with similar specifications to Omron Automation and Safety LY2N-D2-DC24.
ParameterValue
Factory Lead Time 1 Weeks
Mount Socket, Socketable
Mounting Type Socketable
Number of Pins 8
CoilResistance 650Ohm
Contact Materials Silver Alloy
Operating Temperature -25u00b0C~55u00b0C
Packaging Bulk
Published 2003
Series LY
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Plug
ECCN Code EAR99
Voltage - Rated DC 24V
Depth 21.5mm
Current Rating 10A
Reference Standard CE; CSA; TUV; UL
Termination Style Plug In
Voltage - Rated AC 250V
Physical Dimension 27.94mm x 21.59mm x 36.06mm
Contact Resistance 50mOhm
Insulation Resistance 100MOhm
Max Voltage Rating (AC) 250V
Max Current Rating 10A
Throw Configuration DPDT
Max Voltage Rating (DC) 125V
Contact Form DPDT (2 Form C)
Relay Type General Purpose
Contact (AC) Max Rating R Load 10A@110VAC
Operate Time 25ms
Coil Voltage 24VDC
Coil Type Non Latching
Switching Voltage 250VAC 125VDC -Max
Coil Current 36.9mA
Release Time 25 ms
Must Operate Voltage 19.2VDC
Power Consumption 900mW
Coil Power 900mW
Must Release Voltage 2.4VDC
Contact/Output Supply Type AC/DC
Relay Action MOMENTARY
Coil Voltage (DC) 24V
Coil/Input Supply Type DC
Features Lighted Indicator
Height 36.06mm
Length 21.59mm
Width 27.94mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
