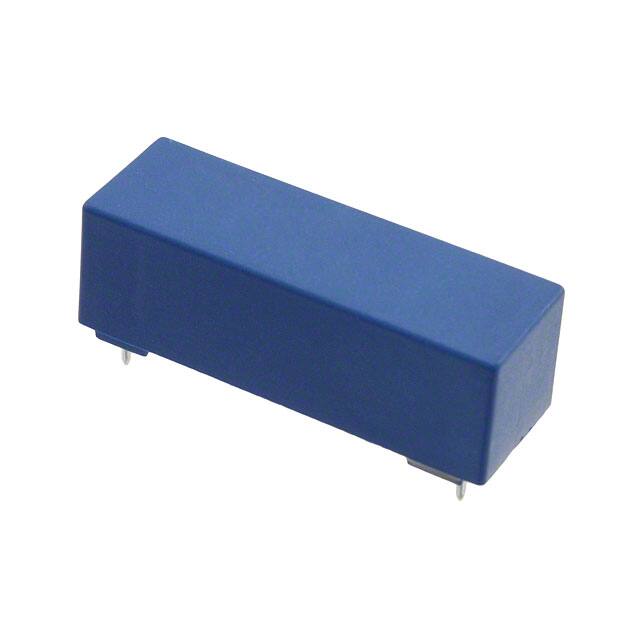

Standex-Meder Electronics LI24-1A85

Standex-Meder Electronics

Manufacturer No:

LI24-1A85

Manufacturer:

Standex-Meder Electronics

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

RELAY REED SPST 1A 24V

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 45

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

Standex-Meder Electronics LI24-1A85 information

Specifications

Documents & Media

Product Comparison

Related Products

Standex-Meder Electronics LI24-1A85 technical specifications, attributes, parameters and parts with similar specifications to Standex-Meder Electronics LI24-1A85.

Parameter	Value
Factory Lead Time	10 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	100
CoilResistance	2kOhm
ElectricalLife	500000000 Cycle(s)
Operating Temperature	-20u00b0C~70u00b0C
Packaging	Tube
Published	2009
Series	LI
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	PC Pin
ECCN Code	EAR99
Terminal Finish	TIN
HTS Code	8536.49.00.50
Reach Compliance Code	unknown
Termination Style	PC Pin
Body Length or Diameter	30mm
Body Breadth	10 mm
Physical Dimension	30mm x 10mm x 10.4mm
Contact Resistance	150mOhm
Contact Current(DC)-Max	1A
Sealing	WATER PROOF
Throw Configuration	SPST
Contact Form	SPST-NO (1 Form A)
Relay Type	Reed
Contact Current(AC)-Max	1A
Operate Time	1ms
Coil Voltage	24VDC
Coil Type	Non Latching
Switching Voltage	1000VAC 1000VDC -Max
Coil Current	12mA
Release Time	0.1ms
Must Operate Voltage	16.8VDC
Coil Power	290mW
Must Release Voltage	3.6VDC
Contact/Output Supply Type	AC/DC
Relay Action	MOMENTARY
Coil Voltage (DC)	24V
Coil/Input Supply Type	DC
Switching Current	1A
Body Height	10.4mm
RoHS Status	ROHS3 Compliant
