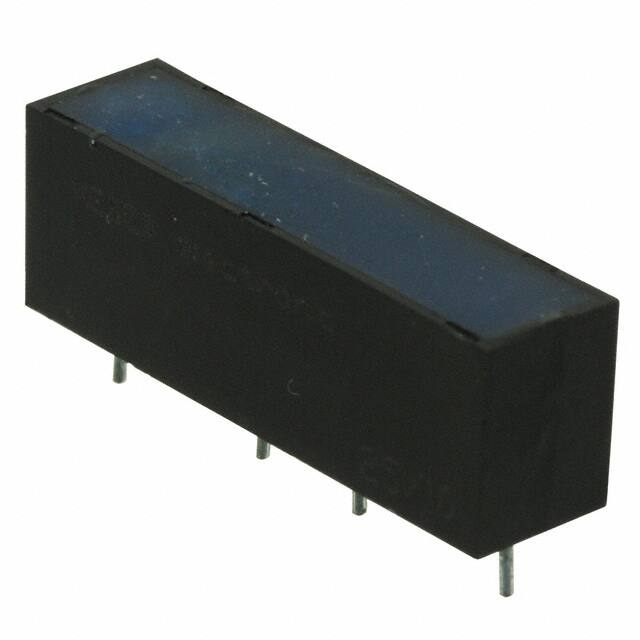

Standex-Meder Electronics SIL05-1A72-71D

Standex-Meder Electronics

Manufacturer No:

SIL05-1A72-71D

Manufacturer:

Standex-Meder Electronics

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

STANDEXMEDER SIL05-1A72-71D RELAY, REED, SPST, 5VDC, 1.25A, SIL, THT

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 15

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

Standex-Meder Electronics SIL05-1A72-71D information

Specifications

Documents & Media

Product Comparison

Related Products

Standex-Meder Electronics SIL05-1A72-71D technical specifications, attributes, parameters and parts with similar specifications to Standex-Meder Electronics SIL05-1A72-71D.

Parameter	Value
Factory Lead Time	10 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	SIP
Number of Pins	4
CoilResistance	500Ohm
ElectricalLife	1000000000 Cycle(s)
Operating Temperature	-20u00b0C~70u00b0C
Packaging	Tube
Published	2002
Series	SIL
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	PC Pin
ECCN Code	EAR99
Depth	5.08mm
Reach Compliance Code	unknown
Termination Style	PC Pin
Physical Dimension	19.8mm x 5.08mm x 7.8mm
Contact Resistance	150mOhm
Contact Voltage(DC)-Max	200V
Throw Configuration	SPST
Contact Form	SPST-NO (1 Form A)
Relay Type	Reed
Contact (AC) Max Rating R Load	1A@200VAC
Operate Time	0.7ms
Coil Voltage	5VDC
Coil Type	Non Latching
Switching Voltage	200VAC 200VDC -Max
Coil Current	10mA
Release Time	0.1ms
Contact (DC) Max Rating R Load	1A@200VDC
Must Operate Voltage	3.5VDC
Contact Rating (Current)	500mA
Coil Power	50mW
Must Release Voltage	0.75VDC
Contact Voltage(AC)-Max	200V
Contact/Output Supply Type	AC/DC
Relay Action	MOMENTARY
Coil Voltage (DC)	5V
Coil/Input Supply Type	DC
Switching Current	1A
Height	7.8mm
Length	19.8mm
Width	5.08mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
