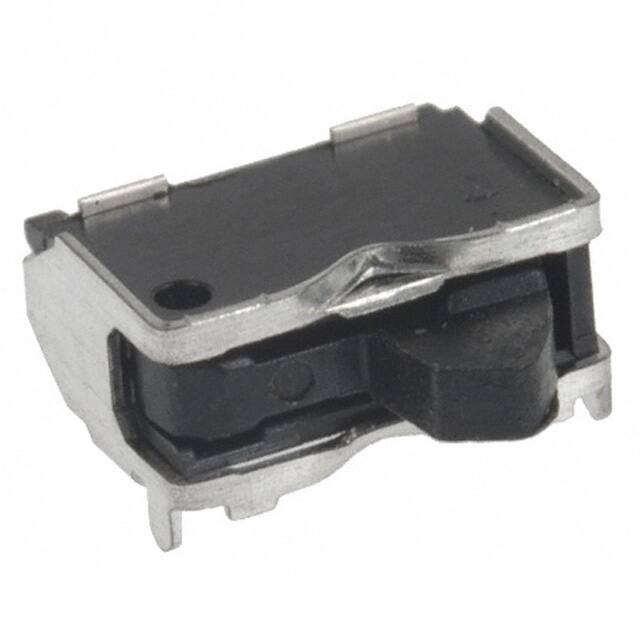

Panasonic Electronic Components ESE-22MH24

Panasonic Electronic Components

Manufacturer No:

ESE-22MH24

Manufacturer:

Panasonic Electronic Components

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

SWITCH DETECTOR SPST-NO 10MA 5V

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 214950

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.
