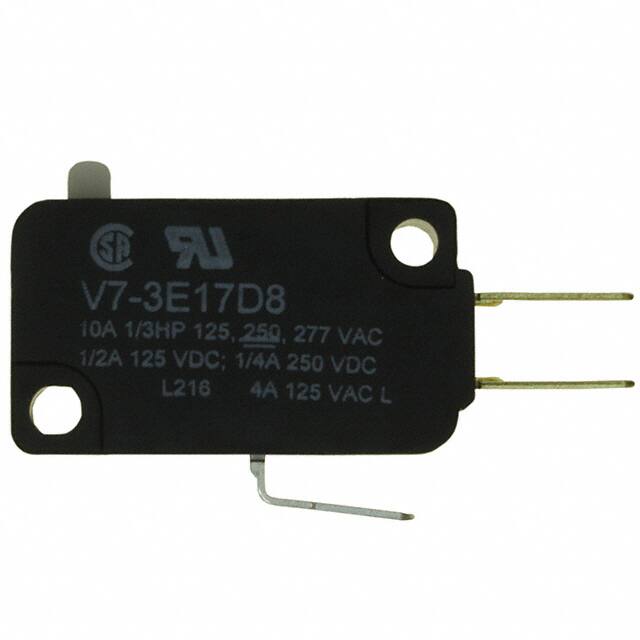

Honeywell Sensing and Productivity Solutions V7-3E17D8

Honeywell Sensing and Productivity Solutions

Manufacturer No:

V7-3E17D8

Manufacturer:

Honeywell Sensing and Productivity Solutions

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

SWITCH SNAP ACTION SPDT 10A 125V

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 3658

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

Honeywell Sensing and Productivity Solutions V7-3E17D8 information

Specifications

Documents & Media

Product Comparison

Related Products

Honeywell Sensing and Productivity Solutions V7-3E17D8 technical specifications, attributes, parameters and parts with similar specifications to Honeywell Sensing and Productivity Solutions V7-3E17D8.

Parameter	Value
Factory Lead Time	12 Weeks
Mount	Chassis Mount, Screw
Mounting Type	Chassis Mount
Housing Material	Polyester
Weight	8g
Actuator Material	Plastic
Contact Materials	Gold, Silver
ElectricalLife	100,000 Cycles
Operating Temperature	-40u00b0C~85u00b0C
Packaging	Bulk
Published	2001
Series	V7
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Quick Connect
ECCN Code	EAR99
HTS Code	8536.50.70.00
Voltage - Rated DC	125V
Current Rating (Amps)	10A AC 500mA DC
Orientation	Straight
Depth	10.16mm
Current Rating	10A
Termination Style	Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC	125V
Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Switch Function	On-Mom
Contact Current(DC)-Max	0.5A
Max Voltage Rating (AC)	277V
Max Current Rating	10A
Max Voltage Rating (DC)	250V
Mechanical Life	10,000,000 Cycles
Switch Type	SNAP ACTING/LIMIT SWITCH
Contact Current Rating	10A
Operating Force	50gf
Contact (AC) Max Rating R Load	10A@277VAC
Contact (DC) Max Rating R Load	.5A@125VDC
Overtravel	0.050 (1.27mm)
Differential Travel	0.010 (0.25mm)
Pretravel	0.047 (1.2mm)
Operating Position	0.579 (14.7mm)
Release Force	5.000gf
Pre-Travel-Max	1.19 mm
Length	38.99mm
Body Height	15.88mm
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
