Omron Electronics Inc-EMC Div D2D-3103

Omron Electronics Inc-EMC Div

Manufacturer No:

D2D-3103

Manufacturer:

Omron Electronics Inc-EMC Div

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

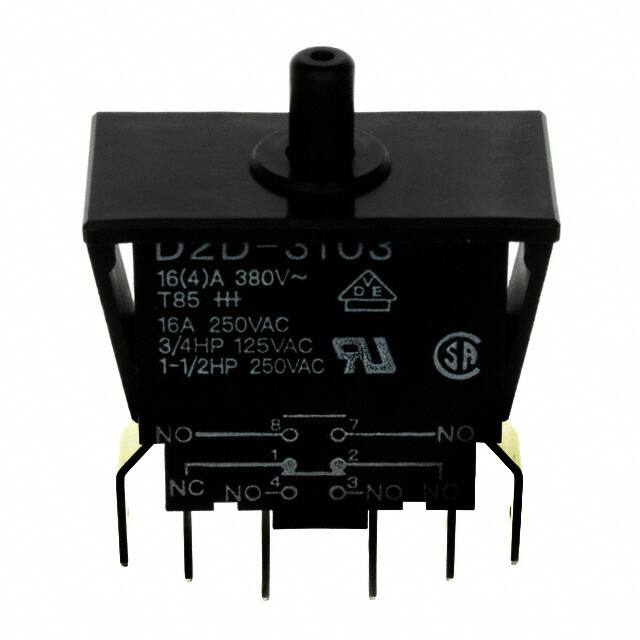

OMRON ELECTRONIC COMPONENTS D2D3103 Microswitch, SPDT-2NO / 1NC, Quick Connect, Solder, 16 A, 250 VAC

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 72

Minimum: 1 Multiples: 1
