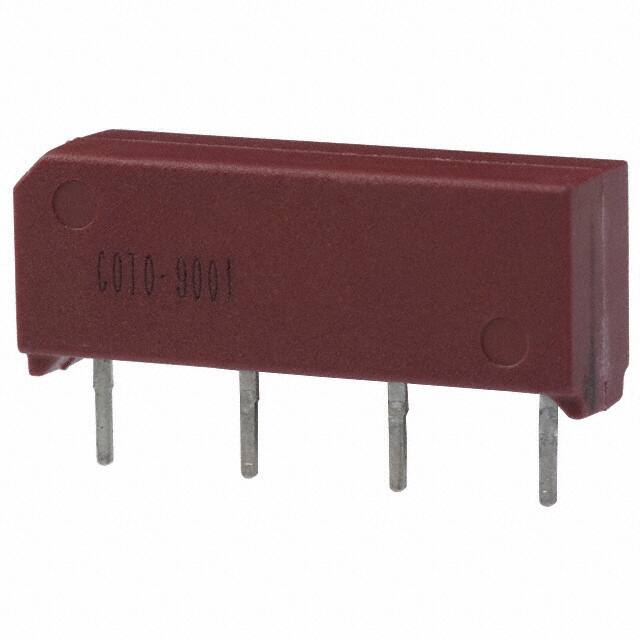

Coto Technology 9001-12-00

Coto Technology

Manufacturer No:

9001-12-00

Manufacturer:

Coto Technology

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

RELAY REED SPST 500MA 12V

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 0

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

Coto Technology 9001-12-00 information

Specifications

Documents & Media

Product Comparison

Related Products

Coto Technology 9001-12-00 technical specifications, attributes, parameters and parts with similar specifications to Coto Technology 9001-12-00.

Parameter	Value
Factory Lead Time	42 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	SIP
Number of Pins	4
CoilResistance	1kOhm
ElectricalLife	1000000000 Cycle(s)
Operating Temperature	-20u00b0C~85u00b0C
Packaging	Tube
Published	2003
Series	9000
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	4
Termination	PC Pin
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Reference Standard	CSA; UL
Termination Style	PC Pin
Approval Agency	CSA, UL
Body Breadth	5.08 mm
Physical Dimension	19.3mm x 5.08mm x 7.6mm
Contact Resistance	200mOhm
Insulation Resistance	1 Tu03a9
Contact Current(DC)-Max	0.5A
Sealing	HERMETICAL
Contact Voltage(DC)-Max	200V
Throw Configuration	SPST
Contact Form	SPST-NO (1 Form A)
Rise Time	350u03bcs
Relay Type	Reed
Contact Current(AC)-Max	0.5A
Contact (AC) Max Rating R Load	0.5A@200VAC
Operate Time	0.35ms
Coil Voltage	12VDC
Coil Type	Non Latching
Switching Voltage	200VAC 200VDC -Max
Coil Current	12mA
Release Time	0.1ms
Contact (DC) Max Rating R Load	0.5A@200VDC
Must Operate Voltage	9VDC
Must Release Voltage	1VDC
Contact Voltage(AC)-Max	200V
Contact/Output Supply Type	AC/DC
Relay Action	LATCHED
Coil Voltage (DC)	12V
Coil/Input Supply Type	DC
PCB Hole Count	4
Dielectric Strength Between Open Contacts	300 Vrms
Input Switching Control Type	Random
Dielectric Strength Between Coil and Contacts	1500 Vrms
Switching Current	500mA
Contact (DC) Max Power Rating R Load	10W@200VDC
Height	7.6mm
Width	19.3mm
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
