Product	Inventory	Pricing(USD)	Datasheet	Additional Feature	Approval Agency	Bearing Type	Current Rating	Current Rating (Amps)	Depth	Factory Lead Time	Fan Type	Features	Flammability Rating	Height	Housing Material	Ingress Protection	Lead Free	Length	Life (Hours)	Lifetime @ Temp.	Material - Blade	Material - Frame	Max Power Dissipation	Moisture Sensitivity Level (MSL)	Mount	Noise	Operating Supply Voltage	Operating Temperature	Package / Case	Packaging	Part Status	Pbfree Code	Power (Watts)	Power Rating	Published	Radiation Hardening	Rated Current	Rated Power	Reach Compliance Code	REACH SVHC	RoHS Status	RPM	Series	Size / Dimension	Speed	Static Pressure	Termination	Thermal Support Device Type	Voltage - Rated DC	Voltage Range	Voltage Rated	Weight	Width
9LG1412P1H001 Sanyo Denki America Inc.	2094	-	-	-	cURus, TUV	Ball	-	1.70A	-	16 Weeks	Tubeaxial	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	-	-	-	-	-	-	-	180000 Hrs @ 60u00b0C	Plastic	Aluminum	-	Not Applicable	-	62.0 dB(A)	-	-4~158u00b0F -20u00b0C~70u00b0C	-	-	Active	-	20.4W	-	-	-	-	-	-	-	ROHS3 Compliant	5200 RPM	San Ace 140L	Square - 140mm Lx140mm H	-	1.200 in H2O (298.9 Pa)	4 Wire Leads	-	-	10.2V~13.8VDC	12VDC	1.4lb 650.0g	-
9LG1412P1M001 Sanyo Denki America Inc.	2252	-	-	-	cURus, TUV	Ball	-	0.600A	-	16 Weeks	Tubeaxial	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	-	-	-	-	-	-	-	180000 Hrs @ 60u00b0C	Plastic	Aluminum	-	Not Applicable	-	46.0 dB(A)	-	-4~158u00b0F -20u00b0C~70u00b0C	-	-	Active	-	7.2W	-	-	-	-	-	-	-	ROHS3 Compliant	3300 RPM	San Ace 140L	Square - 140mm Lx140mm H	-	0.680 in H2O (169.4 Pa)	4 Wire Leads	-	-	10.2V~13.8VDC	12VDC	1.4lb 650.0g	-

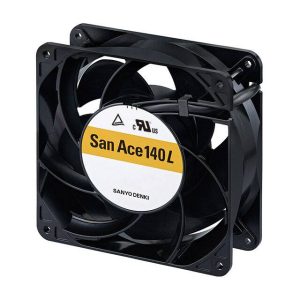

9LG1424P1A001 Sanyo Denki America Inc.	33	-	-	-	cURus, TUV	Ball	-	1.86A	-	16 Weeks	Tubeaxial	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	-	-	-	-	-	-	-	180000 Hrs @ 60u00b0C	Plastic	Aluminum	-	Not Applicable	-	68.0 dB(A)	-	-4~158u00b0F -20u00b0C~70u00b0C	-	-	Active	-	44.64W	-	-	-	-	-	-	-	ROHS3 Compliant	6900 RPM	San Ace 140L	Square - 140mm Lx140mm H	-	2.070 in H2O (515.6 Pa)	4 Wire Leads	-	-	20.4V~27.6VDC	24VDC	1.4lb 650.0g	-
9LG1424P1M001 Sanyo Denki America Inc.	2257	-	-	APPROVALS: UL	cURus, TUV	Ball	-	0.300A	-	16 Weeks	Tubeaxial	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	-	-	-	-	-	140mm	-	180000 Hrs @ 60u00b0C	Plastic	Aluminum	-	Not Applicable	-	46.0 dB(A)	-	-4~158u00b0F -20u00b0C~70u00b0C	-	-	Active	-	7.2W	-	-	-	0.3A	7.2W	-	-	ROHS3 Compliant	3300 RPM	San Ace 140L	Square - 140mm Lx140mm H	-	0.680 in H2O (169.4 Pa)	4 Wire Leads	DC FAN	-	20.4V~27.6VDC	24VDC	1.4lb 650.0g	38mm
9LG1448P1A001 Sanyo Denki America Inc.	2319	-	-	-	cURus, TUV	Ball	-	0.920A	-	16 Weeks	Tubeaxial	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	-	-	-	-	-	-	-	180000 Hrs @ 60u00b0C	Plastic	Aluminum	-	Not Applicable	-	68.0 dB(A)	-	-4~158u00b0F -20u00b0C~70u00b0C	-	-	Active	-	44.16W	-	-	-	-	-	-	-	ROHS3 Compliant	6900 RPM	San Ace 140L	Square - 140mm Lx140mm H	-	2.070 in H2O (515.6 Pa)	4 Wire Leads	-	-	40.8V~55.2VDC	48VDC	1.4lb 650.0g	-
9LG1448P1H001 Sanyo Denki America Inc.	11	-	-	-	cURus, TUV	Ball	-	0.420A	-	16 Weeks	Tubeaxial	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	-	-	-	-	-	-	-	180000 Hrs @ 60u00b0C	Plastic	Aluminum	-	Not Applicable	-	62.0 dB(A)	-	-4~158u00b0F -20u00b0C~70u00b0C	-	-	Active	-	20.16W	-	-	-	-	-	-	-	ROHS3 Compliant	5200 RPM	San Ace 140L	Square - 140mm Lx140mm H	-	1.200 in H2O (298.9 Pa)	4 Wire Leads	-	-	40.8V~55.2VDC	48VDC	1.4lb 650.0g	-
9LG1448P1M001 Sanyo Denki America Inc.	2691	-	-	-	cURus, TUV	Ball	-	0.150A	-	16 Weeks	Tubeaxial	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	-	-	-	-	-	-	-	180000 Hrs @ 60u00b0C	Plastic	Aluminum	-	Not Applicable	-	46.0 dB(A)	-	-4~158u00b0F -20u00b0C~70u00b0C	-	-	Active	-	7.2W	-	-	-	-	-	-	-	ROHS3 Compliant	3300 RPM	San Ace 140L	Square - 140mm Lx140mm H	-	0.680 in H2O (169.4 Pa)	4 Wire Leads	-	-	40.8V~55.2VDC	48VDC	1.4lb 650.0g	-

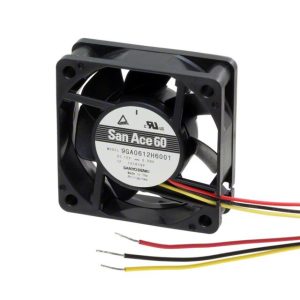

9S0612M401 Sanyo Denki America Inc.	164	-	-	-	CSA, TUV, UL	Ball	70mA	-	-	16 Weeks	Tubeaxial	Speed Sensor (Tach)	-	60mm	Plastic	-	-	60mm	-	-	-	-	-	1 (Unlimited)	-	-	-	-	Axial	Bulk	Active	-	-	-	2014	-	-	-	-	Unknown	ROHS3 Compliant	-	San Ace 60	Square - 60mm Lx60mm H	-	-	3 Wire Leads	-	-	-	12VDC	-	25.00mm

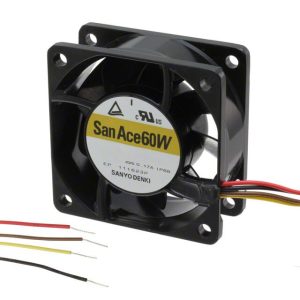

9WL0612P4S001 Sanyo Denki America Inc.	2325	-	-	-	CSA, TUV, UL	Ball	670mA	0.670A	-	16 Weeks	Tubeaxial	PWM Control, Speed Sensor (Tach)	-	-	Aluminium	IP68 - Dust Tight, Waterproof	-	-	-	180000 Hrs @ 60u00b0C	Plastic	Aluminum	-	1 (Unlimited)	-	53.0 dB(A)	12V	-4~158u00b0F -20u00b0C~70u00b0C	Axial	-	Active	-	8.04W	8.04W	2014	-	-	-	-	Unknown	ROHS3 Compliant	11000 RPM	San Ace 60W	Square - 60mm Lx60mm H	-	1.204 in H2O (299.9 Pa)	4 Wire Leads	-	-	10.8V~13.2VDC	12VDC	0.243lb 110.22g	25.00mm

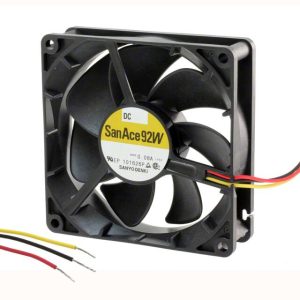

9WL0912P4J001 Sanyo Denki America Inc.	48	-	-	-	CSA, TUV, UL	Ball	420mA	0.420A	-	16 Weeks	Tubeaxial	PWM Control, Speed Sensor (Tach)	-	-	Aluminium	IP68 - Dust Tight, Waterproof	-	-	-	180000 Hrs @ 60u00b0C	Plastic	Aluminum	-	1 (Unlimited)	-	44.0 dB(A)	12V	-4~158u00b0F -20u00b0C~70u00b0C	Axial	-	Active	-	5.04W	5.04W	2014	-	-	-	-	Unknown	ROHS3 Compliant	5000 RPM	San Ace 92W	Square - 92mm Lx92mm H	-	0.420 in H2O (104.6 Pa)	4 Wire Leads	-	-	10.8V~13.2VDC	12VDC	0.375lb 170.1g	25.00mm
9WL0924P1F001 Sanyo Denki America Inc.	56	-	-	-	cURus, TUV	Ball	-	0.500A	-	16 Weeks	Tubeaxial	PWM Control, Speed Sensor (Tach)	-	-	-	IP68 - Dust Tight, Waterproof	-	-	-	100000 Hrs @ 60u00b0C	Plastic	Aluminum	-	Not Applicable	-	55.0 dB(A)	-	-4~158u00b0F -20u00b0C~70u00b0C	-	-	Active	-	12W	-	-	-	-	-	-	-	ROHS3 Compliant	7000 RPM	San Ace 92W	Square - 92mm Lx92mm H	-	1.050 in H2O (261.5 Pa)	4 Wire Leads	-	-	20.4V~26.4VDC	24VDC	0.661lb 299.82g	-

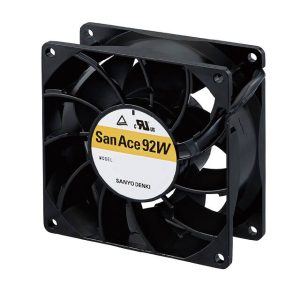

9WL0924P1H001 Sanyo Denki America Inc.	2702	-	-	-	cURus, TUV	Ball	-	0.950A	-	16 Weeks	Tubeaxial	PWM Control, Speed Sensor (Tach)	-	-	-	IP68 - Dust Tight, Waterproof	-	-	-	100000 Hrs @ 60u00b0C	Plastic	Aluminum	-	Not Applicable	-	61.0 dB(A)	-	-4~158u00b0F -20u00b0C~70u00b0C	-	-	Active	-	22.8W	-	-	-	-	-	-	-	ROHS3 Compliant	9000 RPM	San Ace 92W	Square - 92mm Lx92mm H	-	1.726 in H2O (429.9 Pa)	4 Wire Leads	-	-	20.4V~26.4VDC	24VDC	0.661lb 299.82g	-
9WL0948P1F601 Sanyo Denki America Inc.	75	-	-	-	cURus, TUV	Ball	-	0.240A	-	16 Weeks	Tubeaxial	PWM Control, Speed Sensor (Tach)	-	-	-	IP68 - Dust Tight, Waterproof	-	-	-	100000 Hrs @ 60u00b0C	Plastic	Aluminum	-	Not Applicable	-	55.0 dB(A)	-	-4~158u00b0F -20u00b0C~70u00b0C	-	-	Active	-	11.52W	-	-	-	-	-	-	-	ROHS3 Compliant	7000 RPM	San Ace 92W	Square - 92mm Lx92mm H	-	1.050 in H2O (261.5 Pa)	4 Wire Leads	-	-	40.8V~52.8VDC	48VDC	0.661lb 299.82g	-

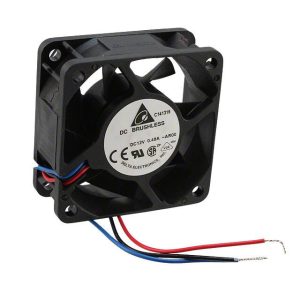

AFB0612EH-AR00 Delta Electronics	157	-	-	-	CE, CSA, UL, VDE	Ball	380mA	0.380A	-	19 Weeks	Tubeaxial	Locked Rotor Sensor	-	60mm	-	-	Lead Free	-	70000 hours	70000 Hrs @ 40u00b0C	-	Plastic	4.56W	1 (Unlimited)	-	46.5 dB(A)	-	14~158u00b0F -10u00b0C~70u00b0C	-	-	Active	-	-	4.56W	2004	-	-	-	unknown	-	ROHS3 Compliant	6800 RPM	AFB	Square - 60mm Lx60mm H	-	0.544 in H2O (135.5 Pa)	3 Wire Leads	-	-	4V~13.8VDC	12VDC	0.176lb 79.83g	-

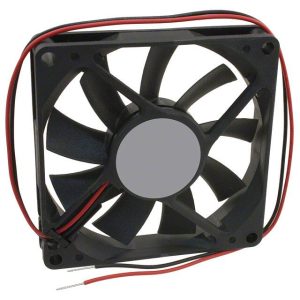

AFB0812HB Delta Electronics	318	-	-	-	CE, CSA, UL, VDE	Ball	140mA	0.140A	80mm	19 Weeks	Tubeaxial	-	-	-	-	-	-	-	-	-	-	Plastic	1.68W	1 (Unlimited)	Flanges	34.0 dB(A)	-	-	Axial	-	Active	-	-	1.68W	2002	No	-	-	-	-	ROHS3 Compliant	3100 RPM	AFB	Square - 80mm Lx80mm H	-	0.138 in H2O (34.3 Pa)	2 Wire Leads	-	-	7V~13.8VDC	12VDC	0.128lb 58.06g	-

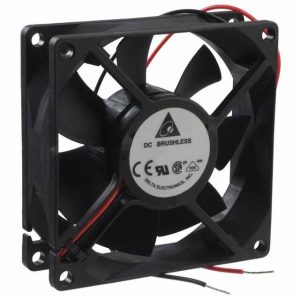

AFB0824SH Delta Electronics	69	-	-	-	CE, CSA, UL, VDE	Ball	160mA	0.160A	25.4mm	19 Weeks	Tubeaxial	-	-	-	-	-	Lead Free	80mm	70000 hours	70000 Hrs @ 40u00b0C	-	Plastic	3.84W	1 (Unlimited)	Flanges	40.0 dB(A)	-	14~140u00b0F -10u00b0C~60u00b0C	Axial	-	Active	-	-	3.84W	2004	-	-	-	-	-	ROHS3 Compliant	4000 RPM	AFB	Square - 80mm Lx80mm H	-	0.267 in H2O (66.5 Pa)	2 Wire Leads	DC FAN	-	14V~26VDC	24VDC	0.176lb 79.83g	-

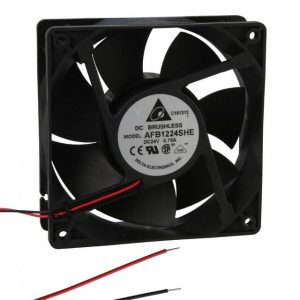

AFB1224SHE Delta Electronics	40	-	-	-	CE, CSA, UL, VDE	Ball	500mA	0.5A	-	19 Weeks	Tubeaxial	-	-	120mm	-	-	Lead Free	-	70000 hours	70000 Hrs @ 40u00b0C	-	Plastic	12W	1 (Unlimited)	Flanges	53.0 dB(A)	-	14~140u00b0F -10u00b0C~60u00b0C	Axial	-	Active	-	-	14.88W	2004	-	-	-	-	-	ROHS3 Compliant	3700 RPM	AFB	Square - 120mm Lx120mm H	4100 rpm	0.571 in H2O (142.2 Pa)	2 Wire Leads	DC FAN	-	7V~27.6VDC	24VDC	0.564lb 255.83g	38mm

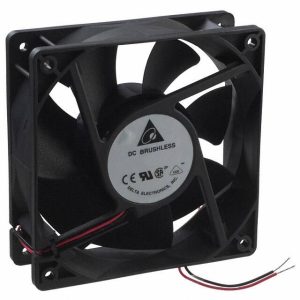

AFB1224VHE Delta Electronics	141	-	-	-	CE, CSA, UL, VDE	Ball	380mA	0.380A	120mm	19 Weeks	Tubeaxial	-	UL94 V-0	120mm	-	-	Lead Free	-	-	-	-	Plastic	9.12W	1 (Unlimited)	Flanges	48.0 dB(A)	-	-	Axial	-	Active	yes	-	9.12W	2014	-	-	-	-	-	ROHS3 Compliant	3200 RPM	AFB	Square - 120mm Lx120mm H	4000 rpm	0.420 in H2O (104.6 Pa)	2 Wire Leads	DC FAN	24V	7V~27.6VDC	-	0.564lb 255.83g	38mm
BFB0512H-R00 Delta Electronics	39	-	-	APPROVALS: CE; VDE	CE, CSA, UL, VDE	Ball	160mA	0.160A	51mm	19 Weeks	Blower	Locked Rotor Sensor	UL94 V-0	51.3mm	-	-	Lead Free	-	-	-	-	Plastic	1.92W	1 (Unlimited)	Flanges	38.0 dB(A)	12V	-	-	-	Active	yes	-	1.92W	-	-	-	-	-	-	ROHS3 Compliant	5500 RPM	BFB	Square/Rounded - 51mm Lx51.3mm H	-	0.709 in H2O (176.6 Pa)	3 Wire Leads	DC FAN	12V	10V~13.8VDC	-	0.062lb 28.12g	15mm

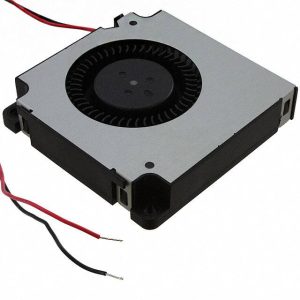

BFB0512HHA-C Delta Electronics	257	-	-	-	CE, CSA, UL, VDE	Ball	160mA	0.160A	50mm	19 Weeks	Blower	Locked Rotor Protection	-	-	-	-	-	-	30000 hours	30000 Hrs @ 40u00b0C	-	Plastic	1.92W	1 (Unlimited)	-	37.5 dB(A)	12V	14~158u00b0F -10u00b0C~70u00b0C	-	-	Active	-	-	1.92W	2015	No	-	-	-	-	ROHS3 Compliant	5900 RPM	BFB	Square - 50mm Lx50mm H	-	0.790 in H2O (196.8 Pa)	2 Wire Leads	-	-	5V~13.2VDC	12VDC	0.05lb 22.68g	-
