Rectangular Terminals

View Mode:

100 Results

Product	Inventory	Pricing(USD)	Datasheet	Body Plating	Color	Contact Finish	Contact Materials	Contact Plating	Depth	Diameter - Barrel ID	Diameter - Barrel OD	Diameter - Ring ID	ECCN Code	Factory Lead Time	Gender	HTS Code	Insulation	Length	Length - Overall	Moisture Sensitivity Level (MSL)	Mount	Mounting Type	Orientation	Package / Case	Packaging	Part Status	Pbfree Code	Published	Radiation Hardening	RoHS Status	Series	Stud/Tab Size	Tab Thickness	Terminal and Terminal Block Type	Terminal Gender	Terminal Style	Terminal Type	Termination	Weight	Width	Width - Outer Edges	Wire Cross Section	Wire Gauge	Wire/Cable Gauge
LCA500-12-6 Panduit Corp	2500	-	-	-	Brown	Electro-Tin	Copper	Tin	-	0.840 (21.34mm)	1.060 (26.92mm)	0.530 (13.46mm)	EAR99	4 Weeks	-	8536.90.40.00	Non-Insulated	89.916mm	3.540 89.92mm	Not Applicable	Free Hanging	Free Hanging (In-Line)	-	-	Bulk	Active	yes	2004	No	ROHS3 Compliant	Pan-Lugu00ae	1/2 Stud	0.220 5.59mm	RING TERMINAL	-	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	-	-	1.540 39.12mm	253.3 mm2	500MCM (kcmil)	-
LCA6-14F-L Panduit Corp	855	-	-	Tin	Blue	Electro-Tin	Copper	-	12.19mm	0.220 (5.59mm)	0.310 (7.87mm)	0.270 (6.86mm)	EAR99	4 Weeks	Female	8536.90.40.00	Non-Insulated	26.16mm	-	Not Applicable	Free Hanging	Free Hanging (In-Line), Right Angle	-	-	Bulk	Active	yes	2004	No	ROHS3 Compliant	Pan-Lugu00ae	1/4 Stud	0.080 2.03mm	WIRE TERMINAL	-	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	453.59237g	-	0.480 12.19mm	-	6 AWG	6 AWG
LCA6-38-L Panduit Corp	3442	-	-	Tin	Blue	Electro-Tin	Copper	-	15.74mm	0.220 (5.59mm)	0.310 (7.87mm)	0.410 (10.41mm)	EAR99	4 Weeks	Female	8536.90.40.00	Non-Insulated	46.482mm	1.830 46.48mm	Not Applicable	Free Hanging	Free Hanging (In-Line)	Straight	-	Bulk	Active	yes	2004	No	ROHS3 Compliant	Pan-Lugu00ae	3/8 Stud	0.060 1.52mm	RING TERMINAL	-	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	485.343836g	-	0.620 15.75mm	-	6 AWG	6 AWG
LCA6-38F-L Panduit Corp	-	-	-	Tin	Blue	Electro-Tin	Copper	-	15.7mm	0.220 (5.59mm)	0.310 (7.87mm)	0.410 (10.41mm)	EAR99	4 Weeks	Female	8536.90.40.00	Non-Insulated	31.8mm	-	Not Applicable	Free Hanging	Free Hanging (In-Line), Right Angle	-	-	Bulk	Active	yes	2011	No	ROHS3 Compliant	Pan-Lugu00ae	3/8 Stud	0.060 1.52mm	WIRE TERMINAL	-	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	521.631226g	-	0.620 15.75mm	-	6 AWG	6 AWG
LCA6-56-L Panduit Corp	4950	-	-	Tin	Blue	Electro-Tin	Copper	-	14.22mm	0.220 (5.59mm)	0.310 (7.87mm)	0.340 (8.64mm)	EAR99	4 Weeks	Female	8535.90.80.20	Non-Insulated	43.942mm	1.730 43.94mm	Not Applicable	Free Hanging	Free Hanging (In-Line)	Straight	-	Bulk	Active	yes	2008	No	ROHS3 Compliant	Pan-Lugu00ae	5/16 Stud	0.070 1.78mm	RING TERMINAL	-	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	480.807912g	-	0.560 14.22mm	-	6 AWG	6 AWG

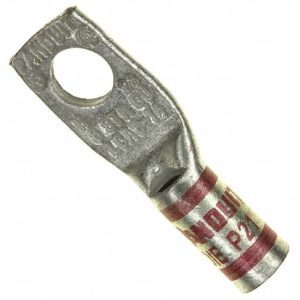

LCA8-14-L Panduit Corp	4850	-	-	Tin	Red	Electro-Tin	Copper	-	12.19mm	0.180 (4.57mm)	0.270 (6.86mm)	0.270 (6.86mm)	EAR99	4 Weeks	Female	8535.90.80.20	Non-Insulated	34.036mm	1.340 34.04mm	Not Applicable	Free Hanging	Free Hanging (In-Line)	Straight	-	Bulk	Active	yes	2008	-	ROHS3 Compliant	Pan-Lugu00ae	1/4 Stud	0.070 1.78mm	RING TERMINAL	-	Single Stud Hole	Lug, Grounding	Crimp, Barrel	335.658382g	12.2mm	0.480 12.19mm	-	8 AWG	8 AWG
LCAF1-14-X Panduit Corp	52	-	-	Tin	Pink	Electro-Tin	Copper	-	19.3mm	0.390 (9.91mm)	0.590 (14.99mm)	0.270 (6.86mm)	EAR99	4 Weeks	-	8536.90.40.00	Non-Insulated	49.53mm	1.950 49.53mm	Not Applicable	Free Hanging	Free Hanging (In-Line)	-	-	Bulk	Active	-	2004	No	ROHS3 Compliant	Pan-Lugu00ae	1/4 Stud	0.120 3.05mm	RING TERMINAL	-	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	-	-	0.800 20.32mm	-	1 AWG	1 AWG
LCAF1-38-X Panduit Corp	34	-	-	Tin	Pink	Electro-Tin	Copper	-	19.3mm	0.390 (9.91mm)	0.590 (14.99mm)	0.410 (10.41mm)	EAR99	4 Weeks	-	8536.90.40.00	Non-Insulated	52.832mm	2.080 52.83mm	Not Applicable	Free Hanging	Free Hanging (In-Line)	-	-	Bulk	Active	-	2004	No	ROHS3 Compliant	Pan-Lugu00ae	3/8 Stud	0.120 3.05mm	RING TERMINAL	-	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	-	-	0.800 20.32mm	-	1 AWG	1 AWG
LCAF1/0-14-X Panduit Corp	32	-	-	-	Black	Electro-Tin	Copper	Tin	-	0.450 (11.43mm)	0.670 (17.02mm)	0.270 (6.86mm)	EAR99	4 Weeks	-	8536.90.40.00	Non-Insulated	62.484mm	2.460 62.48mm	Not Applicable	Free Hanging	Free Hanging (In-Line)	-	-	Bulk	Active	yes	2004	No	ROHS3 Compliant	Pan-Lugu00ae	1/4 Stud	0.130 3.30mm	RING TERMINAL	-	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	-	-	0.850 21.59mm	-	1/0 AWG	-
LCAF4/0-56-X Panduit Corp	38	-	-	Tin	Yellow	Electro-Tin	Copper	-	29.71mm	0.630 (16.00mm)	0.910 (23.11mm)	0.340 (8.64mm)	EAR99	4 Weeks	-	8536.90.40.00	Non-Insulated	65.532mm	2.580 65.53mm	Not Applicable	Free Hanging	Free Hanging (In-Line)	-	-	Bulk	Active	yes	2004	No	ROHS3 Compliant	Pan-Lugu00ae	5/16 Stud	0.140 3.56mm	RING TERMINAL	-	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	-	-	1.170 29.72mm	-	4/0 AWG	-
LCAF400-12H-6 Panduit Corp	-	-	-	Tin	Brown	Electro-Tin	Copper	-	43.2mm	0.920 (23.37mm)	1.340 (34.04mm)	0.530 (13.46mm)	EAR99	4 Weeks	-	8536.90.40.00	Non-Insulated	104.7mm	-	Not Applicable	Free Hanging	Free Hanging (In-Line), 45u00b0 Angle	-	104	Bulk	Active	yes	2004	No	ROHS3 Compliant	Pan-Lugu00ae	1/2 Stud	0.260 6.60mm	WIRE TERMINAL	-	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	-	-	1.700 43.18mm	-	400MCM (kcmil)	-
LCAF400-78H-6 Panduit Corp	-	-	-	-	Brown	Electro-Tin	Copper	Tin	-	0.920 (23.37mm)	1.340 (34.04mm)	0.910 (23.11mm)	EAR99	4 Weeks	-	8536.90.40.00	Non-Insulated	-	-	Not Applicable	Free Hanging	Free Hanging (In-Line), 45u00b0 Angle	-	104	Bulk	Obsolete	yes	2004	No	ROHS3 Compliant	Pan-Lugu00ae	7/8 Stud	0.260 6.60mm	WIRE TERMINAL	-	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	-	-	1.700 43.18mm	-	400MCM (kcmil)	-
LCAF8-56-L Panduit Corp	-	-	-	Tin	Red	Electro-Tin	Copper	-	14.22mm	0.180 (4.57mm)	0.320 (8.13mm)	0.340 (8.64mm)	EAR99	4 Weeks	-	8536.90.40.00	Non-Insulated	42.164mm	1.660 42.16mm	Not Applicable	Free Hanging	Free Hanging (In-Line)	-	-	Bulk	Active	yes	2004	No	ROHS3 Compliant	Pan-Lugu00ae	5/16 Stud	0.050 1.27mm	RING TERMINAL	-	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	-	-	0.560 14.22mm	-	8 AWG	8 AWG
LCAN3/0-38-X Panduit Corp	1094	-	-	Tin	Orange	Electro-Tin	Copper	-	16.25mm	0.510 (12.95mm)	0.640 (16.26mm)	0.410 (10.41mm)	EAR99	4 Weeks	Male	8536.90.40.00	Non-Insulated	59.944mm	2.360 59.94mm	Not Applicable	Free Hanging	Free Hanging (In-Line)	Straight	-	Bulk	Active	-	2008	No	ROHS3 Compliant	Pan-Lugu00ae	3/8 Stud	0.160 4.06mm	WIRE TERMINAL	-	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	385.553543g	-	0.640 16.26mm	-	3/0 AWG	3 AWG
LCAS4-56-L Panduit Corp	-	-	-	Tin	Gray	Electro-Tin	Copper	-	14mm	0.280 (7.11mm)	0.380 (9.65mm)	0.340 (8.64mm)	EAR99	4 Weeks	-	8536.90.40.00	Non-Insulated	37.338mm	1.470 37.34mm	Not Applicable	Free Hanging	Free Hanging (In-Line)	-	-	Bulk	Active	-	2004	No	ROHS3 Compliant	Pan-Lugu00ae	5/16 Stud	0.090 2.29mm	WIRE TERMINAL	FEMALE	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	-	-	0.550 13.97mm	-	4 AWG	4 AWG
LCAX4-14F-L Panduit Corp	189	-	-	Tin	Gray	Electro-Tin	Copper	-	14mm	0.280 (7.11mm)	0.380 (9.65mm)	0.270 (6.86mm)	EAR99	4 Weeks	-	8536.90.40.00	Non-Insulated	28.5mm	-	Not Applicable	Free Hanging	Free Hanging (In-Line), Right Angle	-	-	Bulk	Active	yes	2004	No	ROHS3 Compliant	Pan-Lugu00ae	1/4 Stud	0.090 2.29mm	WIRE TERMINAL	-	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	-	-	0.550 13.97mm	-	4 AWG	4 AWG
LCAX4/0-56-X Panduit Corp	873	-	-	Tin	Purple	Electro-Tin	Copper	-	30.22mm	0.650 (16.51mm)	0.810 (20.57mm)	0.340 (8.64mm)	EAR99	4 Weeks	-	8536.90.40.00	Non-Insulated	64.262mm	2.530 64.26mm	Not Applicable	Free Hanging	Free Hanging (In-Line)	-	-	Bulk	Active	yes	2004	No	ROHS3 Compliant	Pan-Lugu00ae	5/16 Stud	0.160 4.06mm	WIRE TERMINAL	-	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	-	-	1.190 30.23mm	-	4/0 AWG	-
LCAX500-12-6 Panduit Corp	201	-	-	Tin	Pink	Electro-Tin	Copper	-	48mm	1.030 (26.16mm)	1.300 (33.02mm)	0.530 (13.46mm)	EAR99	4 Weeks	-	8536.90.40.00	Non-Insulated	92.456mm	3.640 92.46mm	Not Applicable	Free Hanging	Free Hanging (In-Line)	-	-	Bulk	Active	yes	2004	No	ROHS3 Compliant	Pan-Lugu00ae	1/2 Stud	0.260 6.60mm	WIRE TERMINAL	-	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	-	-	1.890 48.01mm	-	500MCM (kcmil)	-
LCAX650-12H-6 Panduit Corp	-	-	-	-	Black	Electro-Tin	Copper	Tin	-	1.050 (26.67mm)	1.350 (34.29mm)	0.530 (13.46mm)	EAR99	4 Weeks	-	8536.90.40.00	Non-Insulated	-	-	Not Applicable	Free Hanging	Free Hanging (In-Line), 45u00b0 Angle	-	-	Bulk	Active	-	2011	No	ROHS3 Compliant	Pan-Lugu00ae	1/2 Stud	0.300 7.62mm	RING TERMINAL	-	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	-	-	1.950 49.53mm	-	650MCM (kcmil)	-
LCB1000-12W-3 Panduit Corp	8	-	-	Tin	White	Electro-Tin	Copper	-	55.1mm	-	-	-	EAR99	4 Weeks	-	8536.90.40.00	Non-Insulated	133.858mm	5.270 133.86mm	Not Applicable	Free Hanging	Free Hanging (In-Line)	-	-	Bulk	Active	-	2004	No	ROHS3 Compliant	Pan-Lugu00ae	1/2 Stud	0.320 8.13mm	WIRE TERMINAL	FEMALE	Single Stud Hole	Rectangular Tongue	Crimp, Barrel	-	-	2.170 55.12mm	-	1000MCM (kcmil)	-
