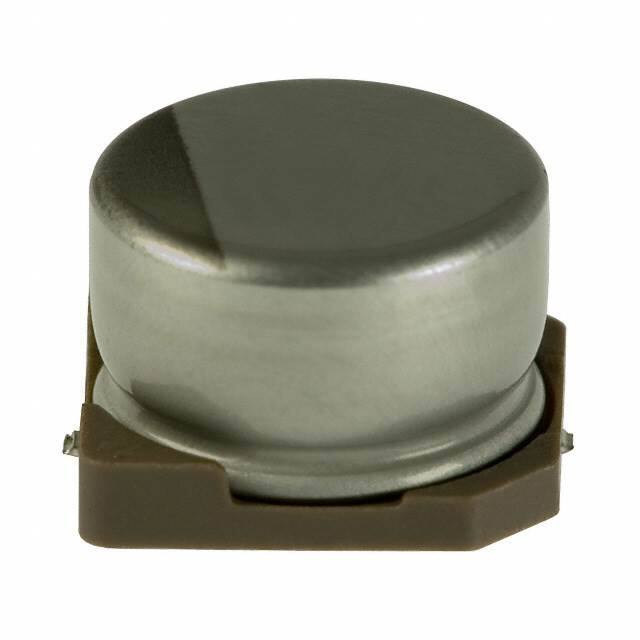

Nichicon UWX1E101MCL1GB
Nichicon UWX1E101MCL1GB thumbnail
Nichicon UWX1E101MCL1GB thumbnail
FREE SAMPLE

Nichicon UWX1E101MCL1GB

Nichicon

Manufacturer No:

UWX1E101MCL1GB

Manufacturer:

Nichicon

Cybertant No:

-

Package:

-

Datasheet:

Datasheet

ECAD Model:

-

Description:

CAP ALUM 100UF 20% 25V SMD

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 37

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Nichicon UWX1E101MCL1GB information

Specifications
Documents & Media
Product Comparison
Related Products
Nichicon UWX1E101MCL1GB technical specifications, attributes, parameters and parts with similar specifications to Nichicon UWX1E101MCL1GB.
ParameterValue
Factory Lead Time 19 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Terminal Shape FLAT
Number of Pins 2
Dielectric Material Aluminium
Weight 4.535924g
Surface Mount Land Size 0.327Lx0.327W 8.30mmx8.30mm
Lifetime @ Temp. 2000 Hrs @ 85u00b0C
Operating Temperature -40u00b0C~85u00b0C
Packaging Tape & Reel (TR)
Published 2009
Series UWX
Size / Dimension 0.315Dia 8.00mm
Tolerance u00b120%
JESD-609 Code e6
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Tin/Bismuth (Sn/Bi)
Applications General Purpose
Capacitance 100u03bcF
Voltage - Rated DC 25V
Lead Pitch 2.3mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Diameter 800 u03bcm
Size Code 3333
Voltage 25V
Leakage Current 3u03bcA
Ripple Current 110mA
Polarization Polar
Life (Hours) 2000 hours
Ripple Current @ Low Frequency 110mA @ 120Hz
Ripple Current @ High Frequency 165mA @ 10kHz
Dissipation Factor 0.14 %
Ripple Current (AC) 110mA
Diameter 8mm
Height 5.4mm
Height Seated (Max) 0.213 5.40mm
Length 8.9mm
Width 8.3mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
