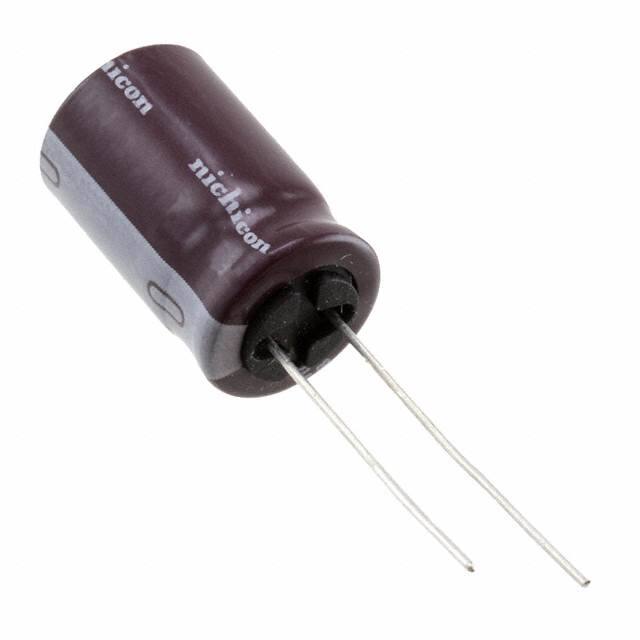

Nichicon UPS2A101MHD
Nichicon UPS2A101MHD thumbnail
Nichicon UPS2A101MHD thumbnail
FREE SAMPLE

Nichicon UPS2A101MHD

Nichicon

Manufacturer No:

UPS2A101MHD

Manufacturer:

Nichicon

Cybertant No:

-

Package:

-

Datasheet:

Datasheet

ECAD Model:

-

Description:

Aluminum Electrolytic Capacitors - Leaded 100volts 100uF 20% 12.5X20 Tol 5LS

Quantity:

Unit Price: 0.757680

Ext Price: $0.76

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 5379

Minimum: 1 Multiples: 1

Qty

Unit Price

Ext Price

  • 1

    0.757680

    $0.76

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Nichicon UPS2A101MHD information

Specifications
Documents & Media
Product Comparison
Related Products
Nichicon UPS2A101MHD technical specifications, attributes, parameters and parts with similar specifications to Nichicon UPS2A101MHD.
ParameterValue
Factory Lead Time 19 Weeks
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Number of Pins 2
Dielectric Material Aluminium
Lifetime @ Temp. 3000 Hrs @ 105u00b0C
Operating Temperature -55u00b0C~105u00b0C
Packaging Bulk
Published 2004
Series UPS
Size / Dimension 0.492Dia 12.50mm
Tolerance u00b120%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Capacitance 100u03bcF
Voltage - Rated DC 100V
Voltage - Rated AC 100V
Lead Pitch 5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.197 5.00mm
Lead Diameter 600 u03bcm
Voltage 100V
Leakage Current 300u03bcA
Ripple Current 580mA
Polarization Polar
Life (Hours) 3000 hours
Tan Delta 0.1
Impedance 180mOhm
Ripple Current @ Low Frequency 290mA @ 120Hz
Ripple Current @ High Frequency 580mA @ 100kHz
Dissipation Factor 0.08 %
Ripple Current (AC) 580mA
Diameter 12.5mm
Height 20mm
Height Seated (Max) 0.866 22.00mm
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
The three parts on the right have similar specifications to Nichicon UPS2A101MHD.
