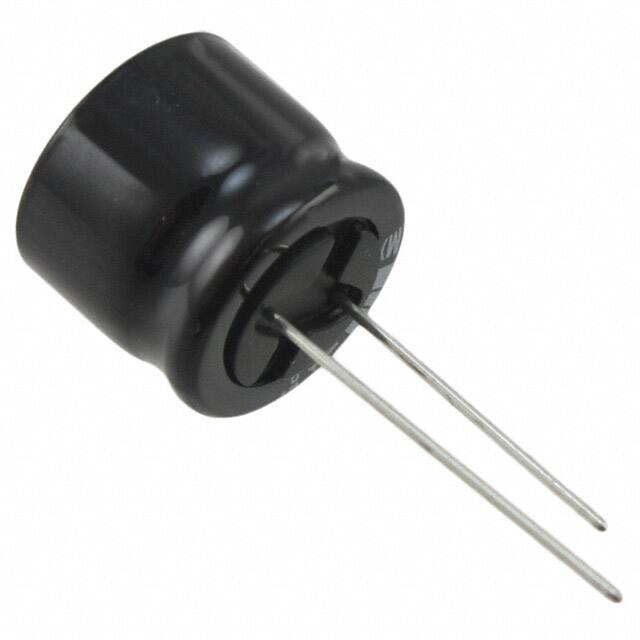

Nichicon UHE1V102MHD6
Nichicon UHE1V102MHD6 thumbnail
Nichicon UHE1V102MHD6 thumbnail
FREE SAMPLE

Nichicon UHE1V102MHD6

Nichicon

Manufacturer No:

UHE1V102MHD6

Manufacturer:

Nichicon

Cybertant No:

-

Package:

-

Datasheet:

Datasheet

ECAD Model:

-

Description:

Aluminum Electrolytic Capacitor 1000UF, 35V, 20%, Radial

Quantity:

Unit Price: 1.177824

Ext Price: $1.18

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 422

Minimum: 1 Multiples: 1

Qty

Unit Price

Ext Price

  • 1

    1.177824

    $1.18

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Nichicon UHE1V102MHD6 information

Specifications
Documents & Media
Product Comparison
Related Products
Nichicon UHE1V102MHD6 technical specifications, attributes, parameters and parts with similar specifications to Nichicon UHE1V102MHD6.
ParameterValue
Factory Lead Time 19 Weeks
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material Aluminium
Lifetime @ Temp. 10000 Hrs @ 105u00b0C
Operating Temperature -40u00b0C~105u00b0C
Packaging Bulk
Published 2009
Series UHE
Size / Dimension 0.709Dia 18.00mm
Tolerance u00b120%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Applications General Purpose
HTS Code 8532.22.00
Capacitance 1000u03bcF
Voltage - Rated DC 35V
Packing Method TAPE
Terminal Pitch 7.5mm
Lead Pitch 7.493mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 110mOhm
Lead Spacing 0.295 7.50mm
Lead Diameter 800 u03bcm
Leakage Current 350u03bcA
Ripple Current 2.21A
Polarization Polar
Life (Hours) 10000 hours
Impedance 43mOhm
Ripple Current @ Low Frequency 1.658A @ 120Hz
Ripple Current @ High Frequency 2.21A @ 100kHz
Dissipation Factor 0.12 %
Diameter 18mm
Height 15mm
Height Seated (Max) 0.591 15.00mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
