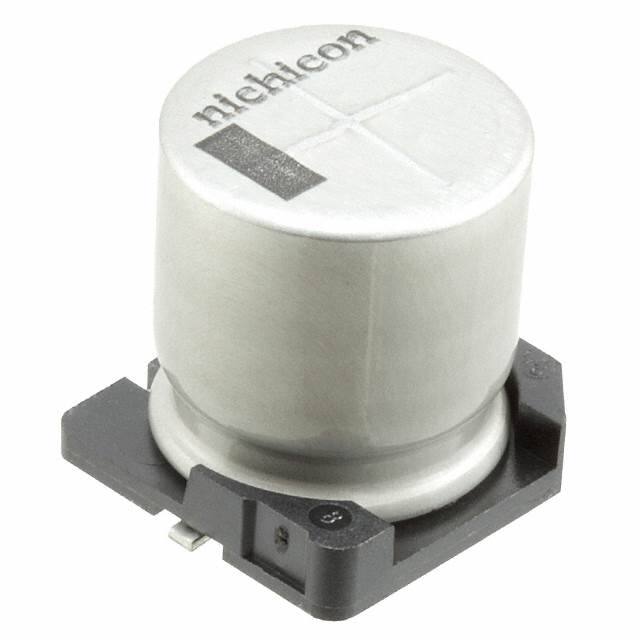

Nichicon UCD2A470MNQ1MS
Nichicon UCD2A470MNQ1MS thumbnail
Nichicon UCD2A470MNQ1MS thumbnail
FREE SAMPLE

Nichicon UCD2A470MNQ1MS

Nichicon

Manufacturer No:

UCD2A470MNQ1MS

Manufacturer:

Nichicon

Cybertant No:

-

Package:

-

Datasheet:

Datasheet

ECAD Model:

-

Description:

Aluminum Electrolytic Capacitors - SMD 100volts 47uF

Quantity:

Unit Price: 0.936943

Ext Price: $0.94

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 10

Minimum: 1 Multiples: 1

Qty

Unit Price

Ext Price

  • 1

    0.936943

    $0.94

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Nichicon UCD2A470MNQ1MS information

Specifications
Documents & Media
Product Comparison
Related Products
Nichicon UCD2A470MNQ1MS technical specifications, attributes, parameters and parts with similar specifications to Nichicon UCD2A470MNQ1MS.
ParameterValue
Factory Lead Time 24 Weeks
Mount PCB, Surface Mount
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Terminal Shape FLAT
Dielectric Material ALUMINUM (WET)
Surface Mount Land Size 0.535Lx0.535W 13.60mmx13.60mm
Lifetime @ Temp. 5000 Hrs @ 105u00b0C
Operating Temperature -55u00b0C~105u00b0C
Packaging Tape & Reel (TR)
Published 2009
Series UCD
Size / Dimension 0.492Dia 12.50mm
Tolerance u00b120%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications Automotive
HTS Code 8532.22.00
Capacitance 47u03bcF
Voltage - Rated DC 100V
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Size Code 7575
Voltage 100V
Leakage Current 3u03bcA
Ripple Current 500mA
Polarization Polar
Life (Hours) 5000 hours
Impedance 320mOhm
Ripple Current @ Low Frequency 250mA @ 120Hz
Ripple Current @ High Frequency 500mA @ 100kHz
Dissipation Factor 0.07 %
Features General Purpose
Diameter 12.5mm
Height 13.5mm
Height Seated (Max) 0.571 14.50mm
Length 14.6mm
Width 13.6mm
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings AEC-Q200
