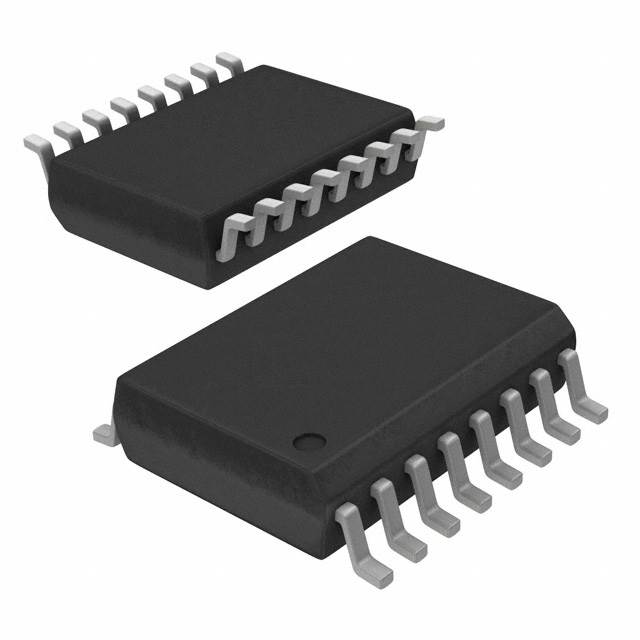

Texas Instruments UCC20520DW
Texas Instruments UCC20520DW thumbnail
Texas Instruments UCC20520DW thumbnail
FREE SAMPLE

Texas Instruments UCC20520DW

Texas Instruments

Manufacturer No:

UCC20520DW

Manufacturer:

Texas Instruments

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

DGTL ISO 5.7KV GATE DRVR 16SOIC

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 691

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Texas Instruments UCC20520DW information

Specifications
Documents & Media
Product Comparison
Related Products
Texas Instruments UCC20520DW technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments UCC20520DW.
ParameterValue
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Mounting Type Surface Mount
Package / Case 16-SOIC (0.295, 7.50mm Width)
Surface Mount YES
Number of Pins 16
Operating Temperature -40u00b0C~125u00b0C
Packaging Tube
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 16
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 1
Supply Voltage 3.3V
Base Part Number UCC20520
Approval Agency CQC, CSA, UR, VDE
Voltage - Isolation 5700Vrms
Working Voltage 2.121kV
Supply Voltage-Max (Vsup) 18V
Supply Voltage-Min (Vsup) 3V
Number of Channels 2
Output Polarity TRUE AND INVERTED
Rise / Fall Time (Typ) 6ns 7ns
Interface IC Type AND GATE BASED MOSFET DRIVER
Turn On Time 0.03 u03bcs
Propagation Delay tpLH / tpHL (Max) 30ns, 30ns
Common Mode Transient Immunity (Min) 100V/ns
Output Peak Current Limit-Nom 6A
Supply Voltage1-Nom 12V
High Side Driver YES
Turn Off Time 0.03 u03bcs
Pulse Width Distortion (Max) 5ns
Voltage - Output Supply 9.2V~25V
Height 2.65mm
Length 10.3mm
Width 7.5mm
Thickness 2.35mm
RoHS Status ROHS3 Compliant
