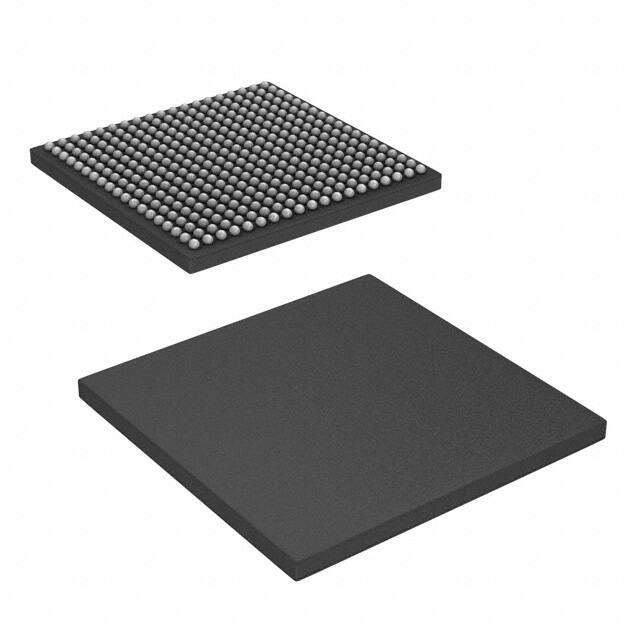

Texas Instruments TMS320DM6446AZWT
Texas Instruments TMS320DM6446AZWT thumbnail
Texas Instruments TMS320DM6446AZWT thumbnail
FREE SAMPLE

Texas Instruments TMS320DM6446AZWT

Texas Instruments

Manufacturer No:

TMS320DM6446AZWT

Manufacturer:

Texas Instruments

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

IC DIGITAL MEDIA SOC 361-BGA

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 90

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Texas Instruments TMS320DM6446AZWT information

Specifications
Documents & Media
Product Comparison
Related Products
Texas Instruments TMS320DM6446AZWT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TMS320DM6446AZWT.
ParameterValue
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 361-LFBGA
Number of Pins 361
Weight 789.392471mg
Operating Temperature 0u00b0C~85u00b0C TC
Packaging Tray
Series TMS320DM644x, DaVinciu2122
JESD-609 Code e1
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 361
Type Digital Media System-on-Chip (DMSoC)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Supply Voltage 1.2V
Terminal Pitch 0.8mm
Frequency 594MHz
Base Part Number 320DM6446
Pin Count 361
Operating Supply Voltage 3.3V
Interface ASP, EBI/EMI, Host Interface, I2C, SPI, UART, USB
Max Supply Voltage 3.45V
Min Supply Voltage 3.15V
Memory Size 8kB
RAM Size 16kB
Number of Bits 32
Bit Size 32
Data Bus Width 32b
Number of Timers/Counters 2
Core Architecture TMS320
Number of Programmable I/O 71
Format FIXED-POINT
Voltage - I/O 1.8V 3.3V
Number of UART Channels 3
Non-Volatile Memory ROM (8kB)
Voltage - Core 1.20V
On Chip Data RAM 160kB
Clock Rate 594MHz DSP, 297MHz ARMu00ae
Height 1.4mm
Length 16mm
Width 16mm
Thickness 900u03bcm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
