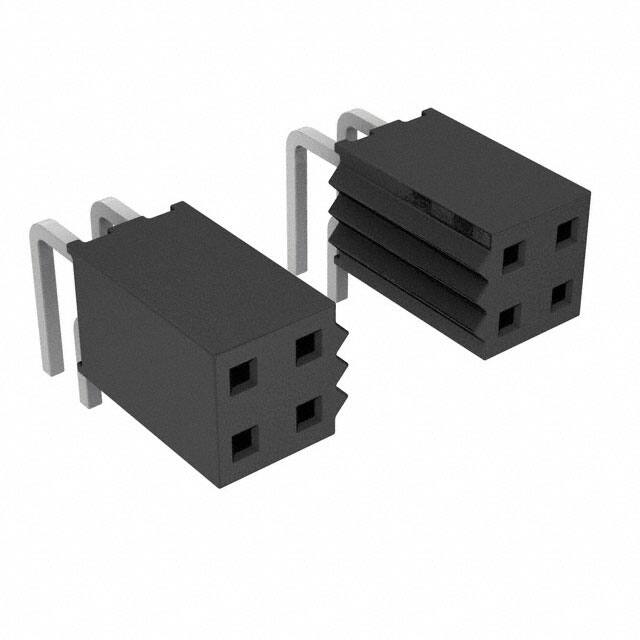

Samtec Inc. SQT-105-01-L-D-RA

Samtec Inc.

Manufacturer No:

SQT-105-01-L-D-RA

Manufacturer:

Samtec Inc.

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

CONN RCPT 10P 0.079 GOLD PCB R/A

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 8

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

Samtec Inc. SQT-105-01-L-D-RA information

Specifications

Documents & Media

Product Comparison

Related Products

Samtec Inc. SQT-105-01-L-D-RA technical specifications, attributes, parameters and parts with similar specifications to Samtec Inc. SQT-105-01-L-D-RA.

Parameter	Value
Factory Lead Time	5 Weeks
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Housing Material	Polymer
Contact Finish Mating	Gold
Contact Materials	Phosphor Bronze
Insulation Materials	Liquid Crystal Polymer (LCP)
Voltage Rated	450VAC
Operating Temperature	-55u00b0C~125u00b0C
Packaging	Bulk
Published	2007
Series	SQT
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	10
Number of Rows	2
Additional Feature	FLEXYZ, TIGER BUY CONTACT
Fastening Type	Push-Pull
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Forked
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	5.1A per Contact
Orientation	Right Angle
Depth	9.62mm
Insulation Height	0.157 4.00mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	5.5A
Pitch - Mating	0.079 2.00mm
Number of Conductors	ONE
Reference Standard	UL, CSA
Voltage - Rated AC	450V
Reliability	COMMERCIAL
Row Spacing - Mating	0.079 (2.00mm)
Contact Length - Post	0.090 2.29mm
Number Of PCB Rows	2
Lead Pitch	2mm
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.158 inch
Contact Gender	FEMALE
Housing Color	Black
Lead Length	2.29mm
Contact Resistance	10mOhm
Mating Contact Pitch	0.079 inch
Max Voltage Rating (AC)	450V
Max Current Rating	5.5A
Polarization Key	POLARIZED HOUSING
Withdrawl Force-Min	.834 N
Length	10.3mm
Contact Finish Thickness - Mating	10.0u03bcin 0.25u03bcm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
