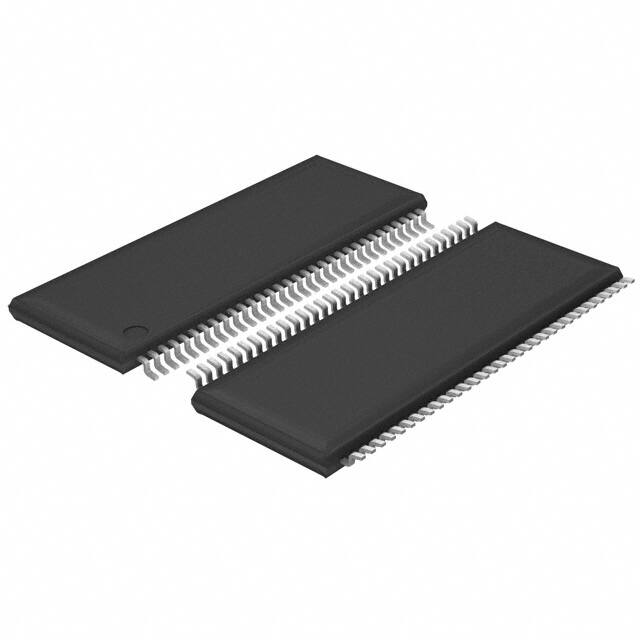

Texas Instruments SN74ALVCH16901DGGR
Texas Instruments SN74ALVCH16901DGGR thumbnail
Texas Instruments SN74ALVCH16901DGGR thumbnail
FREE SAMPLE

Texas Instruments SN74ALVCH16901DGGR

Texas Instruments

Manufacturer No:

SN74ALVCH16901DGGR

Manufacturer:

Texas Instruments

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

18-Bit Universal Bus Transceiver with Parity Generators/Checkers 64-TSSOP -40 to 85

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 1676

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Texas Instruments SN74ALVCH16901DGGR information

Specifications
Documents & Media
Product Comparison
Related Products
Texas Instruments SN74ALVCH16901DGGR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments SN74ALVCH16901DGGR.
ParameterValue
Mounting Type Surface Mount
Package / Case 64-TFSOP (0.240, 6.10mm Width)
Surface Mount YES
Operating Temperature -40u00b0C~85u00b0C
Packaging Cut Tape (CT)
Series 74ALVCH
JESD-609 Code e4
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 64
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Additional Feature WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
HTS Code 8542.39.00.01
Packing Method TR
Voltage - Supply 1.65V~3.6V
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 2
Supply Voltage 1.8V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number 74ALVCH16901
Pin Count 64
JESD-30 Code R-PDSO-G64
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 3.6V
Power Supplies 3.3V
Supply Voltage-Min (Vsup) 1.65V
Number of Circuits 18-Bit
Load Capacitance 50pF
Number of Ports 2
Number of Bits 9
Family ALVC/VCX/A
Output Characteristics 3-STATE
Logic Type Universal Bus Transceiver
Output Polarity TRUE
Max I(ol) 0.024 A
Prop. Delay@Nom-Sup 4.4 ns
Trigger Type POSITIVE EDGE
Propagation Delay (tpd) 6.4 ns
Control Type INDEPENDENT CONTROL
Power Supply Current-Max (ICC) 0.04mA
Count Direction BIDIRECTIONAL
Translation N/A
Height Seated (Max) 1.2mm
Length 17mm
Width 6.1mm
RoHS Status ROHS3 Compliant
