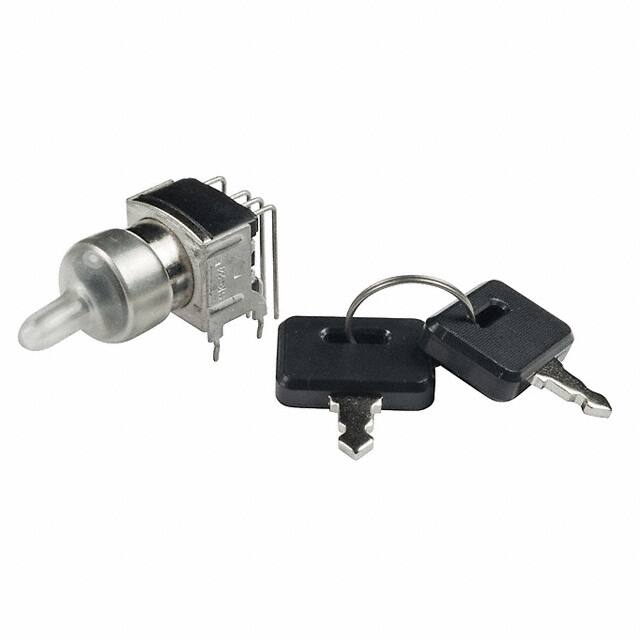

NKK Switches SK24EG30
NKK Switches SK24EG30 thumbnail
NKK Switches SK24EG30 thumbnail
FREE SAMPLE

NKK Switches SK24EG30

NKK Switches

Manufacturer No:

SK24EG30

Manufacturer:

NKK Switches

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

SWITCH KEYLK 3POS DP3T 0.4VA 28V

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 43

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
NKK Switches SK24EG30 information

Specifications
Documents & Media
Product Comparison
Related Products
NKK Switches SK24EG30 technical specifications, attributes, parameters and parts with similar specifications to NKK Switches SK24EG30.
ParameterValue
Factory Lead Time 18 Weeks
Mount Through Hole
Mounting Type Through Hole, Right Angle
Terminal Material BRASS
Contact Materials Beryllium Copper
ElectricalLife 10,000 Cycles
Insulation Materials GLASS FILLED POLYESTER
Operating Temperature -25u00b0C~70u00b0C
Published 2010
Series SK
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Number of Positions 3
Terminal Finish Tin (Sn)
Additional Feature KEY REMOVABLE POSITION 2
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Contact Finish Gold
Termination Style PC Pin
Voltage - Rated AC 28V
Body Breadth 15.24 mm
Actuator Type Flat Key
Circuit DP3T
Switch Function On-On-On
Contact Style Non-Shorting
Contact Resistance 0.08mOhm
Insulation Resistance 100000000Ohm
Sealing MOLDED
Dielectric Withstanding Voltage 500VAC V
Mechanical Life 30,000 Cycles
Switch Type KEYLOCK SWITCH
Contact Timing Non-Shorting (BBM)
Index Angle 45 u00b0
PCB Hole Count 12
Solderability WAVE
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Key Removable Positions 2 only
Washability SOLVENT
Bushing Diameter 0.472 inch
Bushing Type UNTHREADED
Features Process Sealed
Body Height 10.4902mm
RoHS Status ROHS3 Compliant
