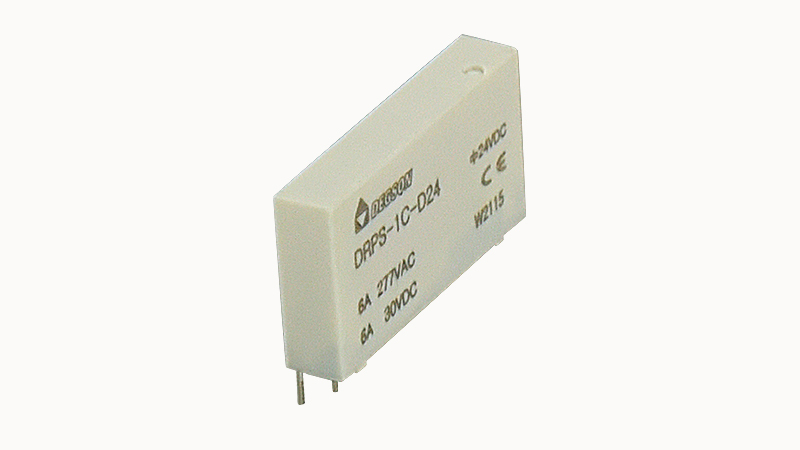

DEGSON Single relay-DRPS-1C-D24-06A(H)
DEGSON Single relay-DRPS-1C-D24-06A(H) thumbnail
DEGSON Single relay-DRPS-1C-D24-06A(H) thumbnail
FREE SAMPLE

DEGSON Single relay-DRPS-1C-D24-06A(H)

DEGSON

Manufacturer No:

Single relay-DRPS-1C-D24-06A(H)

Manufacturer:

DEGSON

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

ultra thintyperelay,1 convert contact, bring instruct light ,with test lever,Rated control Voltage:24VDC, continued current:6A

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 0

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
DEGSON Single relay-DRPS-1C-D24-06A(H) information

Specifications
Documents & Media
Product Comparison
Related Products
DEGSON Single relay-DRPS-1C-D24-06A(H) technical specifications, attributes, parameters and parts with similar specifications to DEGSON Single relay-DRPS-1C-D24-06A(H).
ParameterValue
Action time <20ms
Ambient temperature (operation) -40 u00b0C ... +85 u00b0C
Ambient temperature (storage/transportation) -40 u00b0C ... +85 u00b0C
CoilResistance 3388u03a9
Contact composition 1C
Contact current maximum 6A
Contact Materials Ag alloy
Contact mechanism single
ElectricalLife >1u00d7105
environment humidity 35%~85%RH
high 15mm
Installation location Arbitrary
Maximum allowable voltage 1.1
Maximum contact voltage AC240V DC28V
Maximum switching frequency (mechanical) 18000 times/h
Maximum switching frequency (rated load) 1800 times/h
Operation mode 100% work factor
Overvoltage category u2162
Pollution level 3
Power consumption at rated conditions 0.40W
Protection level IP50
Rated input voltage UN 24VDC
Reset time <10ms
Reset voltage u226510%
Shock proof 10G
Standards/Regulations IEC 61810-1 IEC 60664
Test Voltage Relay Coils/Relay Contacts 4000VAC/1min
Typical input current under UN 22mA
Vibration resistant 10-55Hz
Withstand voltage (between coil and contact) 4000VAC/1min
Withstand voltage (between contacts of the same pole) 1000VAC/1min
Insulation resistance u2265100Mu03a9
Mechanical life >1u00d7107
insulation Basic isolation
Operating voltage u226475%
length 28mm
width 5mm
