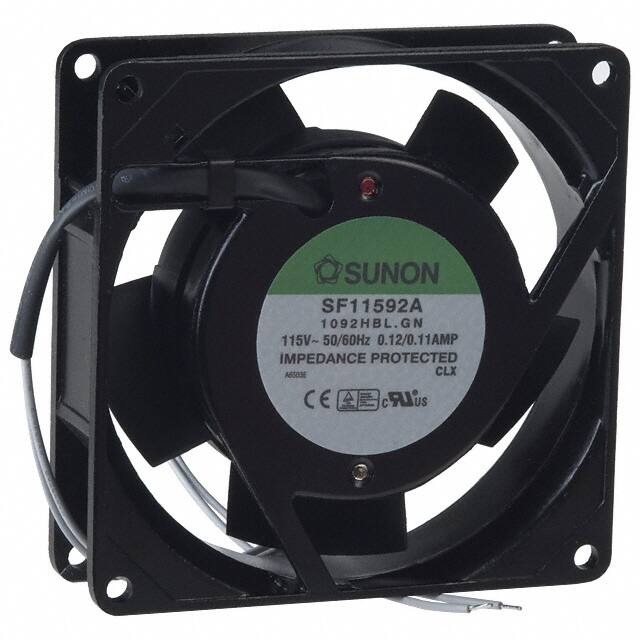

Sunon Fans SF11592A-1092HBL.GN

Sunon Fans

Manufacturer No:

SF11592A-1092HBL.GN

Manufacturer:

Sunon Fans

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

FAN AXIAL 92X25MM 115VAC WIRE

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 2417

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

Sunon Fans SF11592A-1092HBL.GN information

Specifications

Documents & Media

Product Comparison

Related Products

Sunon Fans SF11592A-1092HBL.GN technical specifications, attributes, parameters and parts with similar specifications to Sunon Fans SF11592A-1092HBL.GN.

Parameter	Value
Factory Lead Time	14 Weeks
Package / Case	Axial
Material	Aluminium
Weight	0.617lb 280.00g
Material - Frame	Aluminum
Material - Blade	Polybutylene Terephthalate (PBT)
Voltage Rated	115VAC
Operating Temperature	14~158u00b0F -10u00b0C~70u00b0C
Series	SF
Size / Dimension	Square - 91.5mm Lx91.5mm H
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	2 Wire Leads
Power (Watts)	12.00W
Current Rating (Amps)	0.110A
Max Power Dissipation	12W
Depth	92mm
Construction	RADIAL
Current Rating	110mA
Approval Agency	CE, CUR, TUV, UL
Operating Supply Voltage	115V
RPM	2850 RPM
Bearing Type	Ball
Fan Type	Tubeaxial
Power Consumption	12W
Noise	40.0 dB(A)
Voltage Range	85V~125VAC
Static Pressure	0.190 in H2O (47.3 Pa)
Thermal Support Device Type	AC FAN
Rated Power	13W
Height	25mm
Length	91.5mm
Width	25.5mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
