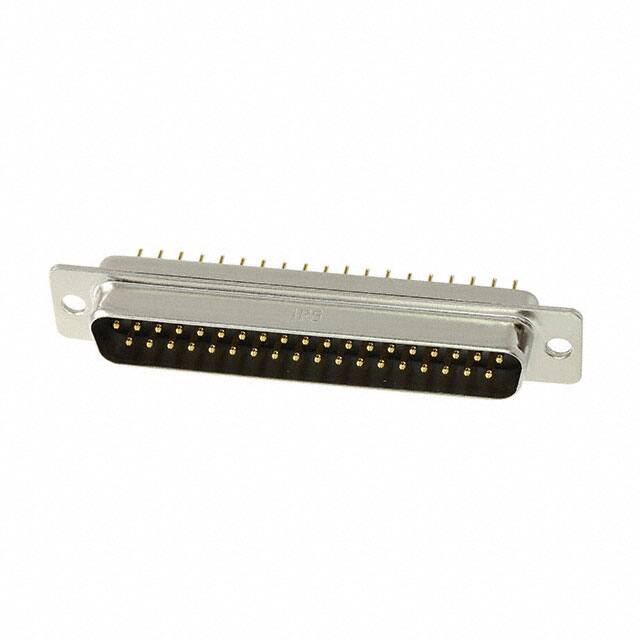

Hirose Electric Co Ltd SDCB-37P(55)
Hirose Electric Co Ltd SDCB-37P(55) thumbnail
Hirose Electric Co Ltd SDCB-37P(55) thumbnail
FREE SAMPLE

Hirose Electric Co Ltd SDCB-37P(55)

Hirose Electric Co Ltd

Manufacturer No:

SDCB-37P(55)

Manufacturer:

Hirose Electric Co Ltd

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

CONN D-SUB PLUG 37P PNL MNT SLDR

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 138

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Hirose Electric Co Ltd SDCB-37P(55) information

Specifications
Documents & Media
Product Comparison
Related Products
Hirose Electric Co Ltd SDCB-37P(55) technical specifications, attributes, parameters and parts with similar specifications to Hirose Electric Co Ltd SDCB-37P(55).
ParameterValue
Factory Lead Time 12 Weeks
Mount Through Hole
Mounting Type Panel Mount, Through Hole
Dielectric Material Polybutylene Terephthalate (PBT)
Housing Material PBT
Shell Material, Finish Steel, Nickel Plated
Contact Materials Phosphor Bronze
Voltage Rated 350V
Packaging Tray
Published 2012
Series SD
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 37
Color Black
Number of Rows 2
Contact Type Signal
Total Number of Contacts 37
Reach Compliance Code unknown
Current Rating 3A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Rated Current (Signal) 3A
Contact Resistance 15mOhm
Insulation Resistance 5000000000Ohm
Flange Feature Housing/Shell (Unthreaded)
Dielectric Withstanding Voltage 1750VAC V
Connector Style D-Sub
Shell Size, Connector Layout 4 DC C
Contact Finish Thickness 8.00u03bcin 0.203u03bcm
Length - Termination 0.157 inch
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
