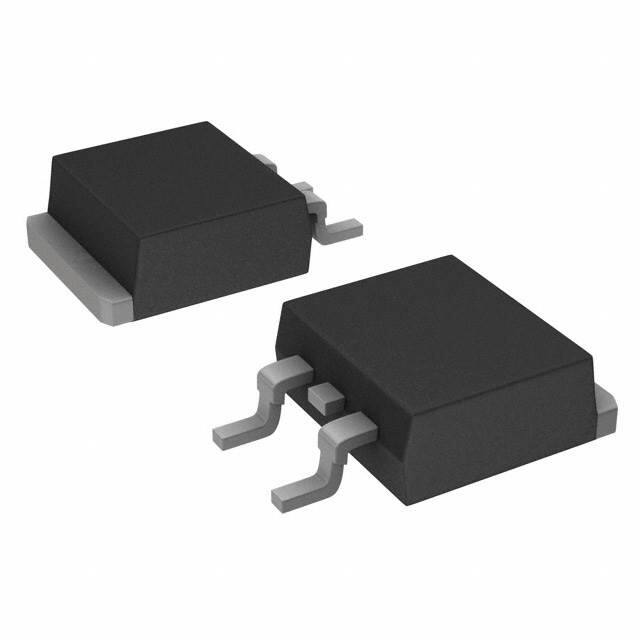

Rohm Semiconductor SCS210AJHRTLL
Rohm Semiconductor SCS210AJHRTLL thumbnail
Rohm Semiconductor SCS210AJHRTLL thumbnail
FREE SAMPLE

Rohm Semiconductor SCS210AJHRTLL

Rohm Semiconductor

Manufacturer No:

SCS210AJHRTLL

Manufacturer:

Rohm Semiconductor

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

DIODE SCHOTTKY 650V 10A TO263AB

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 1065

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Rohm Semiconductor SCS210AJHRTLL information

Specifications
Documents & Media
Product Comparison
Related Products
Rohm Semiconductor SCS210AJHRTLL technical specifications, attributes, parameters and parts with similar specifications to Rohm Semiconductor SCS210AJHRTLL.
ParameterValue
Factory Lead Time 20 Weeks
Mounting Type Surface Mount
Package / Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Surface Mount YES
Number of Elements 1
Operating Temperature (Max.) 175u00b0C
Power Dissipation (Max) 83W
Packaging Tape & Reel (TR)
Published 2016
Series Automotive, AEC-Q101
JESD-609 Code e2
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin/Copper (Sn/Cu)
Applications GENERAL PURPOSE
Additional Feature PD-CASE
HTS Code 8541.10.00.80
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PSSO-G2
Configuration SINGLE
Speed No Recovery Time > 500mA (Io)
Diode Type Silicon Carbide Schottky
Current - Reverse Leakage @ Vr 200u03bcA @ 600V
Voltage - Forward (Vf) (Max) @ If 1.55V @ 10A
Case Connection CATHODE
Operating Temperature - Junction 175u00b0C Max
Output Current-Max 10A
Voltage - DC Reverse (Vr) (Max) 650V
Current - Average Rectified (Io) 10A DC
Number of Phases 1
Reverse Recovery Time 0ns
Rep Pk Reverse Voltage-Max 650V
Capacitance @ Vr, F 365pF @ 1V 1MHz
Non-rep Pk Forward Current-Max 30A
Reverse Current-Max 200u03bcA
RoHS Status ROHS3 Compliant

No documents or media available for this product.

The three parts on the right have similar specifications to Rohm Semiconductor SCS210AJHRTLL.

No similar products have been configured yet.
