Home / All Products / Magnetics Modular Jacks / Amphenol ICC (Commercial Products) RJHSE-538A

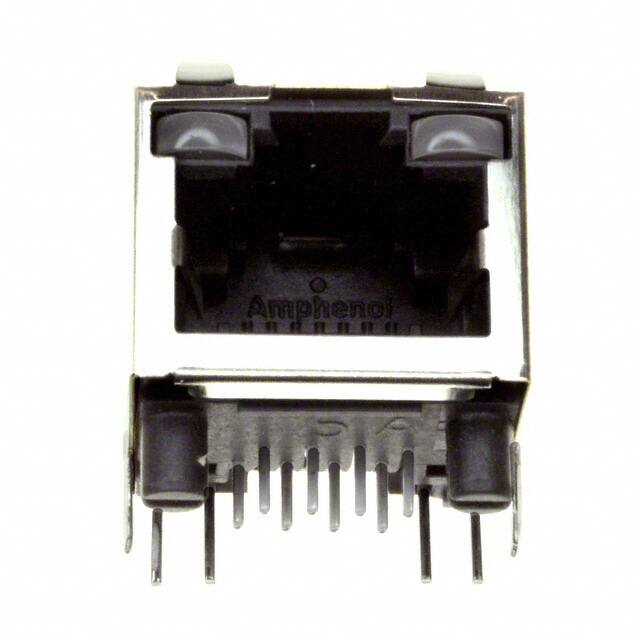

Amphenol ICC (Commercial Products) RJHSE-538A

Amphenol ICC (Commercial Products)

Manufacturer No:

RJHSE-538A

Manufacturer:

Amphenol ICC (Commercial Products)

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

CONN MOD JACK 8P8C R/A SHIELDED

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 2318

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

Amphenol ICC (Commercial Products) RJHSE-538A information

Specifications

Documents & Media

Product Comparison

Related Products

Amphenol ICC (Commercial Products) RJHSE-538A technical specifications, attributes, parameters and parts with similar specifications to Amphenol ICC (Commercial Products) RJHSE-538A.

Parameter	Value
Factory Lead Time	7 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Shell Material	COPPER ALLOY
Housing Material	Thermoplastic
Contact Materials	Phosphor Bronze
Voltage Rated	125V
Operating Temperature	-55u00b0C~85u00b0C
Packaging	Tray
Published	2005
Series	RJHSE
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Jack
Color	Green, Yellow
Gender	Female
Additional Feature	STANDARA: RJ45, SHIELDED
Voltage - Rated DC	125V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	2.03mm
Total Number of Contacts	8
Orientation	90u00b0 Angle (Right)
Shielding	Shielded, EMI Finger
Depth	15.75mm
Number of Positions Loaded	8
Current Rating	1.5A
Shell Finish	NICKEL
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
PCB Contact Pattern	STAGGERED
Body Breadth	0.53 inch
UL Flammability Code	94V-0
Empty Shell	NO
Contact Style	TELCOM, MODULAR
Contact Resistance	20mOhm
Max Voltage Rating (AC)	125V
Max Current Rating	1.5A
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
LED Color	Green, Yellow - Green, Yellow
Tab Direction	Up
Features	Board Lock
Length	16.51mm
Contact Finish Thickness	50.0u03bcin 1.27u03bcm
Plating Thickness	50u03bcin
RoHS Status	RoHS Compliant
Lead Free	Lead Free
