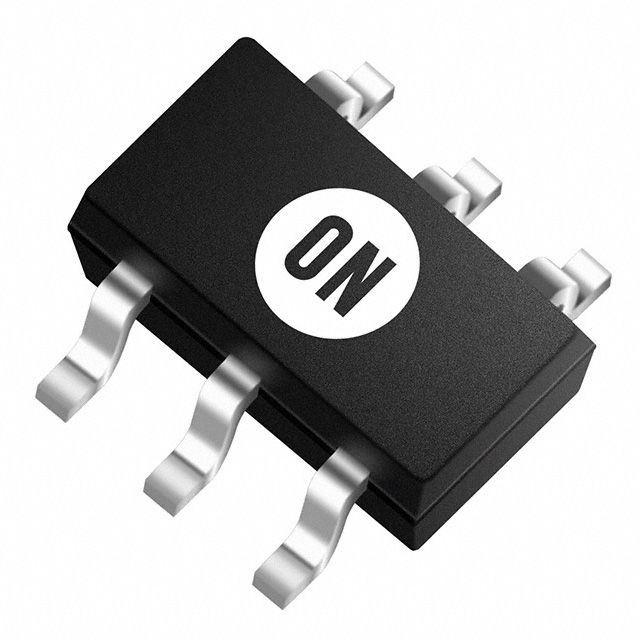

ON Semiconductor NLAS4599DFT2G
ON Semiconductor NLAS4599DFT2G thumbnail
ON Semiconductor NLAS4599DFT2G thumbnail
FREE SAMPLE

ON Semiconductor NLAS4599DFT2G

ON Semiconductor

Manufacturer No:

NLAS4599DFT2G

Manufacturer:

ON Semiconductor

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

Analog Switch Single SPDT 6-Pin SC-88 T/R

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 45000

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
ON Semiconductor NLAS4599DFT2G information

Specifications
Documents & Media
Product Comparison
Related Products
ON Semiconductor NLAS4599DFT2G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NLAS4599DFT2G.
ParameterValue
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Contact Plating Tin
Mounting Type Surface Mount
Package / Case 6-TSSOP, SC-88, SOT-363
Surface Mount YES
Number of Pins 6
Turn Off Delay Time 12 ns
Operating Temperature -55u00b0C~125u00b0C TA
Packaging Tape & Reel (TR)
Published 2006
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Resistance 30Ohm
Max Power Dissipation 200mW
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 4.5V
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number NLAS4599
Pin Count 6
Number of Outputs 2
Polarity Non-Inverting
Number of Channels 1
Max Supply Voltage 5.5V
Min Supply Voltage 2V
Operating Supply Current 1u03bcA
Nominal Supply Current 1u03bcA
Power Dissipation 200mW
Turn On Delay Time 28 ns
Halogen Free Halogen Free
Supply Type Single
-3db Bandwidth 220MHz
On-State Resistance (Max) 25Ohm
High Level Output Current 50mA
Low Level Output Current 50mA
Multiplexer/Demultiplexer Circuit 2:1
Off-state Isolation-Nom 93 dB
Current - Leakage (IS(off)) (Max) 100nA
Channel Capacitance (CS(off), CD(off)) 10pF 10pF
On-state Resistance Match-Nom 3Ohm
Switch Circuit SPDT
Switch Time (Ton, Toff) (Max) 14ns, 8ns
Charge Injection 3pC
Channel-to-Channel Matching (u0394Ron) 2 u03a9
Switching BREAK-BEFORE-MAKE
Switch-on Time-Max 30ns
Voltage - Supply, Single (V+) 2V~5.5V
Height 1mm
Length 2.2mm
Width 1.35mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
