Home / All Products / Current Regulator IC / ON Semiconductor NIS5132MN1TXG

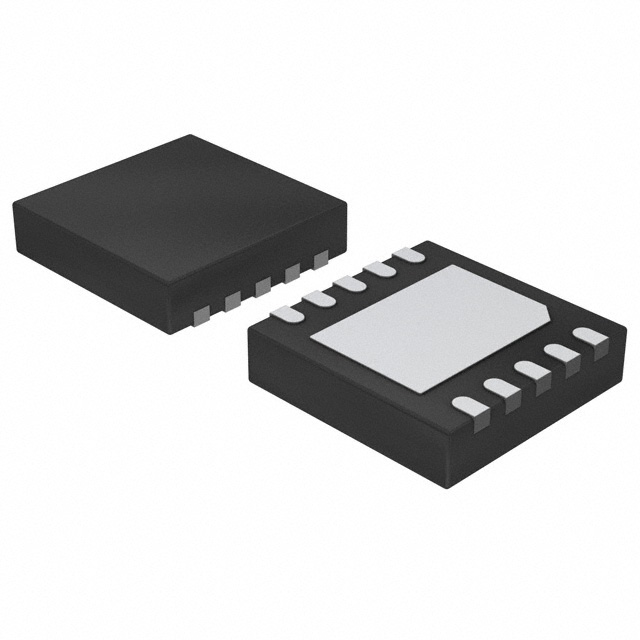

ON Semiconductor NIS5132MN1TXG
ON Semiconductor NIS5132MN1TXG thumbnail
ON Semiconductor NIS5132MN1TXG thumbnail
FREE SAMPLE

ON Semiconductor NIS5132MN1TXG

ON Semiconductor

Manufacturer No:

NIS5132MN1TXG

Manufacturer:

ON Semiconductor

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

IC ELECTRONIC FUSE 10DFN

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 5000

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
ON Semiconductor NIS5132MN1TXG information

Specifications
Documents & Media
Product Comparison
Related Products
ON Semiconductor NIS5132MN1TXG technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NIS5132MN1TXG.
ParameterValue
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 10-VFDFN Exposed Pad
Number of Pins 10
Usage Level Automotive grade
Watchdog Timers No
Operating Temperature -40u00b0C~150u00b0C
Packaging Tape & Reel (TR)
Published 2003
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
ECCN Code EAR99
Max Power Dissipation 1.3W
Terminal Position DUAL
Supply Voltage 12V
Terminal Pitch 0.5mm
Current Rating 3.6A
Base Part Number NIS5132
Function Electronic Fuse
Working Voltage 18V
Number of Channels 1
Max Supply Voltage 18V
Min Supply Voltage 9V
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Nominal Supply Current 1.8mA
Adjustable Threshold NO
Number of Voltages Monitored 1
Halogen Free Halogen Free
Nominal Input Voltage 12V
Sensing Method High-Side
Max Junction Temperature (Tj) 150u00b0C
Height 1mm
Length 3mm
Width 3mm
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free

No documents or media available for this product.

The three parts on the right have similar specifications to ON Semiconductor NIS5132MN1TXG.

No similar products have been configured yet.
