Home / All Products / Buffers & Transceivers / ON Semiconductor NC7WZ17L6X

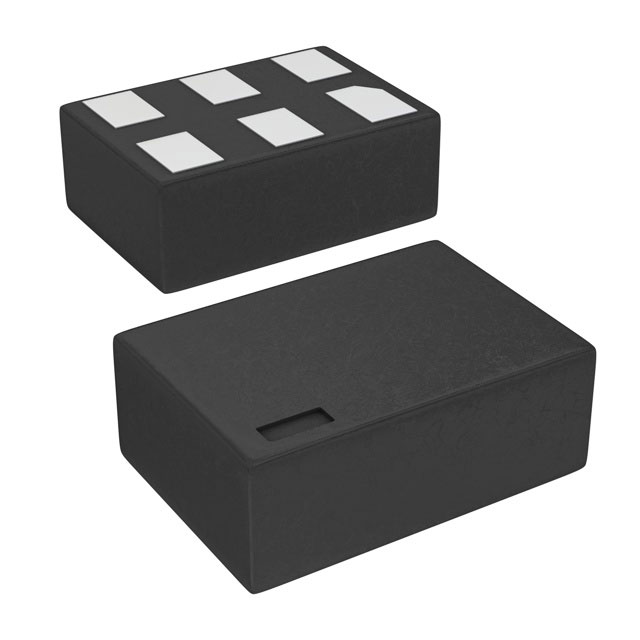

ON Semiconductor NC7WZ17L6X
ON Semiconductor NC7WZ17L6X thumbnail
ON Semiconductor NC7WZ17L6X thumbnail
FREE SAMPLE

ON Semiconductor NC7WZ17L6X

ON Semiconductor

Manufacturer No:

NC7WZ17L6X

Manufacturer:

ON Semiconductor

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

IC BUFF DL SCHMT TRIG 6MICROPAK

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 156117

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
ON Semiconductor NC7WZ17L6X information

Specifications
Documents & Media
Product Comparison
Related Products
ON Semiconductor NC7WZ17L6X technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NC7WZ17L6X.
ParameterValue
Factory Lead Time 22 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-UFDFN
Number of Pins 6
Weight 30g
Operating Temperature -40u00b0C~85u00b0C TA
Packaging Tape & Reel (TR)
Published 2008
Series 7WZ
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Packing Method TAPE AND REEL
Max Power Dissipation 180mW
Voltage - Supply 1.65V~5.5V
Terminal Position DUAL
Number of Functions 2
Supply Voltage 1.8V
Terminal Pitch 0.5mm
Base Part Number 7WZ17
Number of Outputs 2
Output Type Push-Pull
Polarity Non-Inverting
Supply Voltage-Max (Vsup) 5.5V
Power Supplies 3.3V
Number of Channels 2
Load Capacitance 50pF
Propagation Delay 15.8 ns
Quiescent Current 1u03bcA
Input Type Schmitt Trigger
Turn On Delay Time 15.8 ns
Family LVC/LCX/Z
Logic Function Buffer, Schmitt Trigger
Logic Type Buffer, Non-Inverting
Number of Bits per Element 1
Prop. Delay@Nom-Sup 7.3 ns
Schmitt Trigger Input Yes
Height 500u03bcm
Length 1.45mm
Width 1mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
