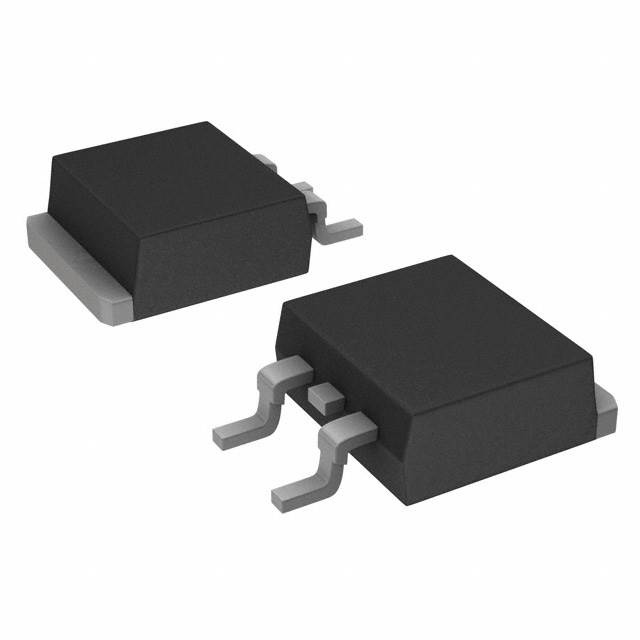

ON Semiconductor MURB1620CTT4G
ON Semiconductor MURB1620CTT4G thumbnail
ON Semiconductor MURB1620CTT4G thumbnail
FREE SAMPLE

ON Semiconductor MURB1620CTT4G

ON Semiconductor

Manufacturer No:

MURB1620CTT4G

Manufacturer:

ON Semiconductor

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

DIODE ARRAY GP 200V 8A D2PAK

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 0

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
ON Semiconductor MURB1620CTT4G information

Specifications
Documents & Media
Product Comparison
Related Products
ON Semiconductor MURB1620CTT4G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MURB1620CTT4G.
ParameterValue
Factory Lead Time 4 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Mounting Type Surface Mount
Package / Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Surface Mount YES
Number of Pins 3
Diode Element Material SILICON
Number of Elements 2
Power Dissipation (Max) 3W
Packaging Tape & Reel (TR)
Published 2006
Series SWITCHMODEu2122
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Max Operating Temperature 175u00b0C
Min Operating Temperature -65u00b0C
Applications ULTRA FAST RECOVERY POWER
Additional Feature FREE WHEELING DIODE
HTS Code 8541.10.00.80
Voltage - Rated DC 200V
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Current Rating 16A
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number MURB1620CT
Pin Count 3
JESD-30 Code R-PSSO-G2
Element Configuration Common Cathode
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 5u03bcA @ 200V
Voltage - Forward (Vf) (Max) @ If 975mV @ 8A
Forward Current 8A
Operating Temperature - Junction -65u00b0C~175u00b0C
Max Surge Current 100A
Output Current-Max 8A
Halogen Free Halogen Free
Forward Voltage 975mV
Max Reverse Voltage (DC) 200V
Average Rectified Current 8A
Number of Phases 1
Reverse Recovery Time 35 ns
Peak Reverse Current 5u03bcA
Max Repetitive Reverse Voltage (Vrrm) 200V
Peak Non-Repetitive Surge Current 100A
Reverse Voltage 200V
Diode Configuration 1 Pair Common Cathode
Max Forward Surge Current (Ifsm) 100A
Recovery Time 35 ns
Height 4.83mm
Length 10.29mm
Width 9.65mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
