Home / All Products / Edgeboard Connectors / Amphenol ICC (Commercial Products) MDT320M02001

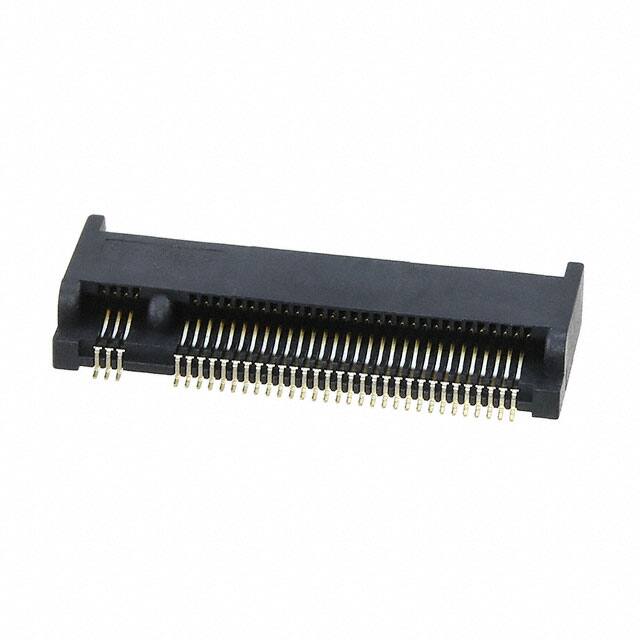

Amphenol ICC (Commercial Products) MDT320M02001
Amphenol ICC (Commercial Products) MDT320M02001 thumbnail
Amphenol ICC (Commercial Products) MDT320M02001 thumbnail
FREE SAMPLE

Amphenol ICC (Commercial Products) MDT320M02001

Amphenol ICC (Commercial Products)

Manufacturer No:

MDT320M02001

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

CONN FEMALE 67POS 0.020 GOLD

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 441000

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Amphenol ICC (Commercial Products) MDT320M02001 information

Specifications
Documents & Media
Product Comparison
Related Products
Amphenol ICC (Commercial Products) MDT320M02001 technical specifications, attributes, parameters and parts with similar specifications to Amphenol ICC (Commercial Products) MDT320M02001.
ParameterValue
Factory Lead Time 9 Weeks
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Material - Insulation Liquid Crystal Polymer (LCP)
Contact Materials Copper Alloy
Operating Temperature -40u00b0C~80u00b0C
Packaging Tape & Reel (TR)
Published 2014
Series M.2
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type CARD EDGE CONNECTOR
Number of Positions 67
Color Black
Number of Rows 2
Gender Female
HTS Code 8536.69.40.40
Pitch 0.020 0.50mm
Total Number of Contacts 75
Reach Compliance Code unknown
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 0.866 inch
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Rated Current (Signal) 0.5A
Contact Resistance 55mOhm
Read Out Dual
Insulation Resistance 500000000Ohm
Dielectric Withstanding Voltage 300VAC V
PCB Contact Row Spacing 7.5438 mm
Contact Pattern STAGGERED
Features Board Lock, Keyed
Contact Finish Thickness 15.0u03bcin 0.38u03bcm
Plating Thickness 30u03bcin
RoHS Status RoHS Compliant

No documents or media available for this product.
