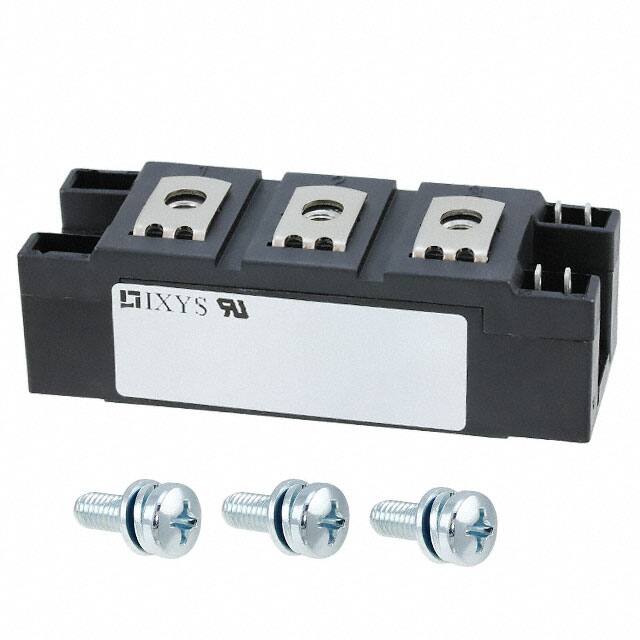

IXYS MCC161-22IO1
IXYS MCC161-22IO1 thumbnail
IXYS MCC161-22IO1 thumbnail
FREE SAMPLE

IXYS MCC161-22IO1

IXYS

Manufacturer No:

MCC161-22IO1

Manufacturer:

IXYS

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

THERISTER MODULE 2200V

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 2273

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
IXYS MCC161-22IO1 information

Specifications
Documents & Media
Product Comparison
Related Products
IXYS MCC161-22IO1 technical specifications, attributes, parameters and parts with similar specifications to IXYS MCC161-22IO1.
ParameterValue
Factory Lead Time 24 Weeks
Mount Chassis Mount, Panel, Screw
Mounting Type Chassis Mount
Package / Case Y4-M6
Number of Pins 7
Number of Elements 2
Number of SCRs/Diodes 2 SCRs
Operating Temperature -40u00b0C~125u00b0C TJ
Packaging Bulk
Published 2005
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 7
Additional Feature UL RECOGNIZED
HTS Code 8541.30.00.80
Voltage - Rated DC 2.2kV
Terminal Position UPPER
Terminal Form UNSPECIFIED
Current Rating 165A
Base Part Number MC*161
Pin Count 7
Configuration SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Case Connection ISOLATED
Max Repetitive Reverse Voltage (Vrrm) 2.2kV
RMS Current (Irms) 300A
Reverse Voltage 2.2kV
Hold Current 150mA
Trigger Device Type SCR
Voltage - Gate Trigger (Vgt) (Max) 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) 6000A 6400A
Current - Gate Trigger (Igt) (Max) 150mA
Current - On State (It (RMS)) (Max) 300A
Structure Series Connection - All SCRs
Repetitive Peak Off-state Voltage 2200V
Leakage Current (Max) 40mA
Non-Repetitive Pk On-state Cur 6000 A
Critical Rate of Rise of Off-State Voltage-Min 1000V/us
Desc. of Screw Terminals A-K-AK
Desc. of Quick-Connects 2G-2GR
Circuit Commutated Turn-off Time-Nom 150 u03bcs
Height 30mm
Length 94mm
Width 34mm
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
