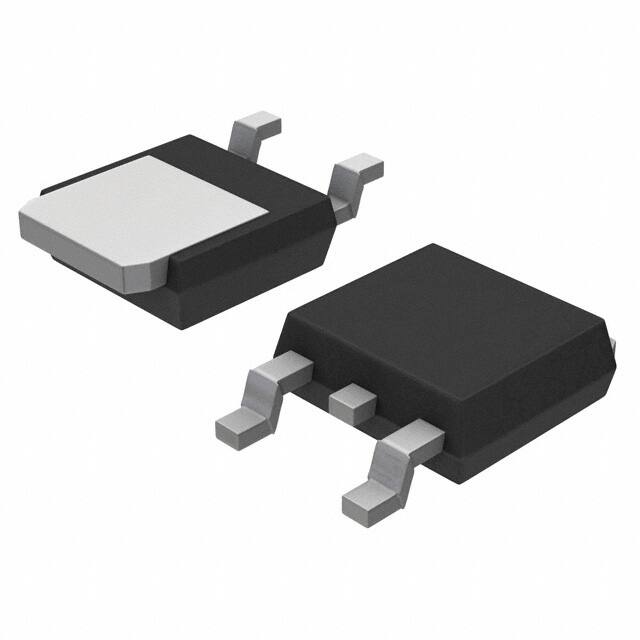

ON Semiconductor MBRD660CTT4G
ON Semiconductor MBRD660CTT4G thumbnail
ON Semiconductor MBRD660CTT4G thumbnail
FREE SAMPLE

ON Semiconductor MBRD660CTT4G

ON Semiconductor

Manufacturer No:

MBRD660CTT4G

Manufacturer:

ON Semiconductor

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

ON Semi MBRD660CTT4G; Dual SMT Schottky Diode; Common Cathode; 60V 6A; 3-Pin D-PAK

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 0

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
ON Semiconductor MBRD660CTT4G information

Specifications
Documents & Media
Product Comparison
Related Products
ON Semiconductor MBRD660CTT4G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MBRD660CTT4G.
ParameterValue
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 13 hours ago)
Contact Plating Tin
Mounting Type Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Surface Mount YES
Number of Pins 3
Diode Element Material SILICON
Number of Elements 2
Packaging Cut Tape (CT)
Published 2011
Series SWITCHMODEu2122
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 175u00b0C
Min Operating Temperature -65u00b0C
Applications FAST RECOVERY POWER
Additional Feature FREE WHEELING DIODE
HTS Code 8541.10.00.80
Voltage - Rated DC 60V
Terminal Position SINGLE
Terminal Form GULL WING
Current Rating 6A
Base Part Number MBRD660CT
Pin Count 3
JESD-30 Code R-PSSO-G2
Element Configuration Common Cathode
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 100u03bcA @ 60V
Voltage - Forward (Vf) (Max) @ If 700mV @ 3A
Forward Current 6A
Max Reverse Leakage Current 100u03bcA
Operating Temperature - Junction -65u00b0C~175u00b0C
Max Surge Current 75A
Output Current-Max 3A
Halogen Free Halogen Free
Forward Voltage 900mV
Max Reverse Voltage (DC) 60V
Average Rectified Current 3A
Number of Phases 1
Peak Reverse Current 100u03bcA
Max Repetitive Reverse Voltage (Vrrm) 60V
Peak Non-Repetitive Surge Current 75A
Diode Configuration 1 Pair Common Cathode
Max Forward Surge Current (Ifsm) 75A
Height 2.38mm
Length 6.73mm
Width 6.22mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
