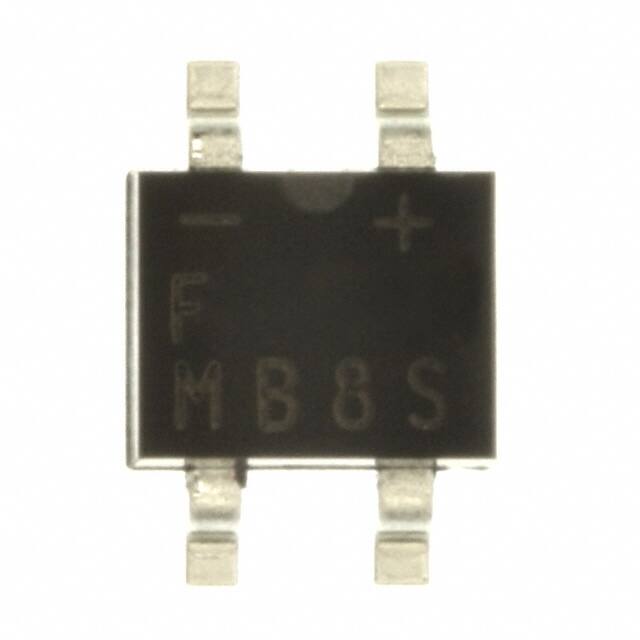

ON Semiconductor MB8S

ON Semiconductor

Manufacturer No:

MB8S

Manufacturer:

ON Semiconductor

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

DIODE BRIDGE 0.5A 800V 4-SOIC
