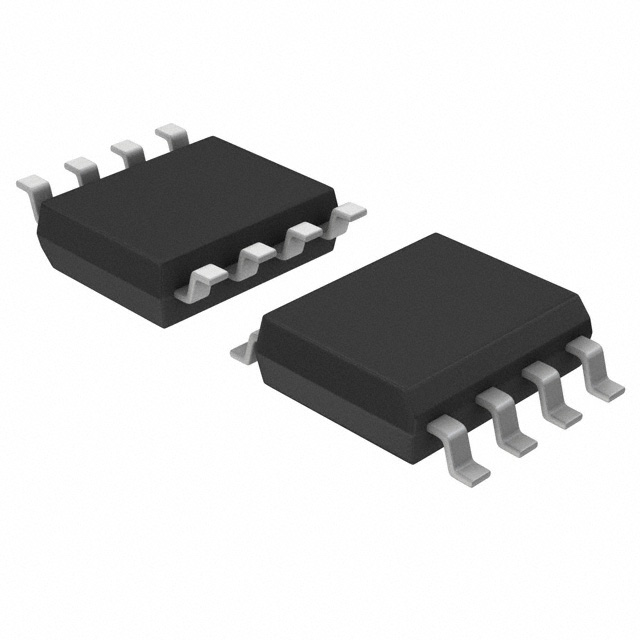

Texas Instruments LM5109BMAX/NOPB
Texas Instruments LM5109BMAX/NOPB thumbnail
Texas Instruments LM5109BMAX/NOPB thumbnail
FREE SAMPLE

Texas Instruments LM5109BMAX/NOPB

Texas Instruments

Manufacturer No:

LM5109BMAX/NOPB

Manufacturer:

Texas Instruments

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

IC GATE DRVR HALF-BRIDGE 8SOIC

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 10000

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Texas Instruments LM5109BMAX/NOPB information

Specifications
Documents & Media
Product Comparison
Related Products
Texas Instruments LM5109BMAX/NOPB technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments LM5109BMAX/NOPB.
ParameterValue
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154, 3.90mm Width)
Number of Pins 8
Driver Configuration Half-Bridge
Logic voltage-VIL, VIH 0.8V 2.2V
Turn Off Delay Time 2 ns
Operating Temperature -40u00b0C~125u00b0C TJ
Packaging Tape & Reel (TR)
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Voltage - Supply 8V~14V
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 12V
Base Part Number LM5109
Number of Outputs 2
Max Output Current 1A
Nominal Supply Current 1.8mA
Output Current 1A
Propagation Delay 32 ns
Quiescent Current 200u03bcA
Input Type Non-Inverting
Turn On Delay Time 2 ns
Rise Time 15ns
Fall Time (Typ) 15 ns
Output Polarity TRUE
Rise / Fall Time (Typ) 15ns 15ns
Channel Type Independent
Turn On Time 0.056 u00b5s
Output Peak Current Limit-Nom 1A
Gate Type N-Channel MOSFET
Current - Peak Output (Source, Sink) 1A 1A
High Side Driver YES
Turn Off Time 0.056 u00b5s
High Side Voltage - Max (Bootstrap) 108V
Height 1.75mm
Length 4.9mm
Width 3.91mm
Thickness 1.58mm
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free

No documents or media available for this product.

The three parts on the right have similar specifications to Texas Instruments LM5109BMAX/NOPB.

No similar products have been configured yet.
