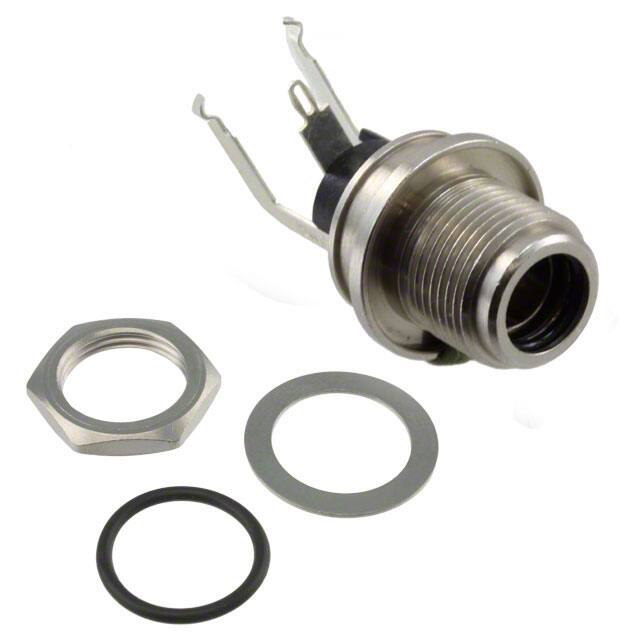

Switchcraft Inc. L712RAS

Switchcraft Inc.

Manufacturer No:

L712RAS

Manufacturer:

Switchcraft Inc.

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

CONN PWR JACK 2.5X5.5MM SOLDER

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 0

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

Switchcraft Inc. L712RAS information

Specifications

Documents & Media

Product Comparison

Related Products

Switchcraft Inc. L712RAS technical specifications, attributes, parameters and parts with similar specifications to Switchcraft Inc. L712RAS.

Parameter	Value
Factory Lead Time	8 Weeks
Contact Plating	Nickel, Silver
Mount	Bulkhead, Panel, Through Hole
Mounting Type	Panel Mount, Through Hole, Right Angle
Mounting Feature	Bulkhead - Front Side Nut
Number of Pins	3
Housing Material	Thermoplastic
Body Material	Copper Alloy
Contact Material - Plating	Silver
Contact Materials	Copper Alloy
Packaging	Bulk
Published	1999
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Jack
Max Operating Temperature	65u00b0C
Min Operating Temperature	-20u00b0C
Gender	Male
Voltage - Rated DC	30V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Option	GENERAL PURPOSE
Orientation	Right Angle
Shielding	Unshielded
Ingress Protection	IP68
Depth	26.3mm
Current Rating	5A
Housing Color	Black
Max Current Rating	5A
Number of Ports	1
Max Voltage Rating (DC)	30V
Thread Size	7/16-32
Number of Positions/Contacts	2 Conductors, 3 Contacts
Includes	4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer
Internal Switch(s)	Single Switch, Normally Closed
Body Color	Silver, Black
Industry Recognized Mating Diameter	2.50mm ID (0.098), 5.50mm OD (0.217)
Actual Diameter	0.098 (2.50mm ID)
Features	Mounting Hardware, Thread Lock
Pin Diameter	2.5 mm
Height	17.018mm
Length	26.3mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
