Home / All Products / Digital Isolators / Texas Instruments ISO7241CDW

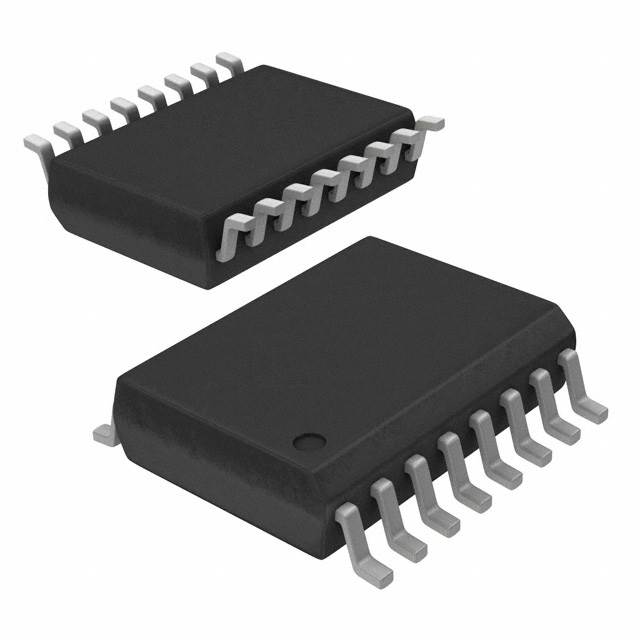

Texas Instruments ISO7241CDW

Texas Instruments

Manufacturer No:

ISO7241CDW

Manufacturer:

Texas Instruments

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

TEXAS INSTRUMENTS ISO7241CDW. DIGITAL ISOLATOR, 42NS, SOIC-16

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 300

Minimum: 1 Multiples: 1
