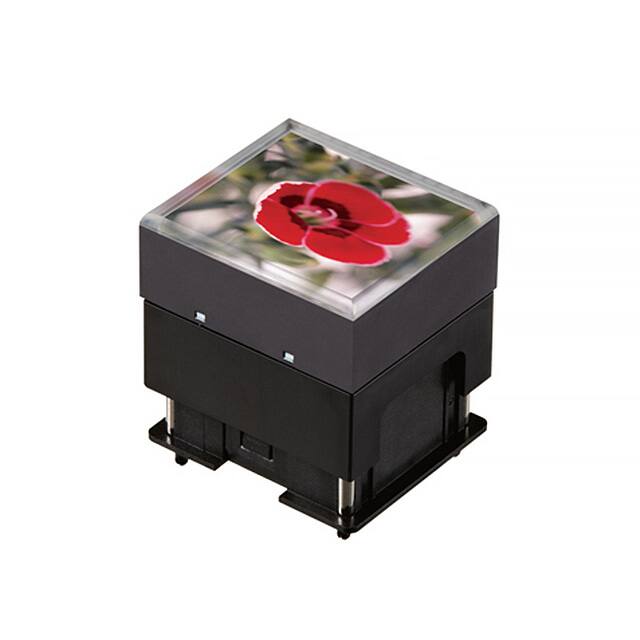

NKK Switches ISF15ACP4
NKK Switches ISF15ACP4 thumbnail
NKK Switches ISF15ACP4 thumbnail
FREE SAMPLE

NKK Switches ISF15ACP4

NKK Switches

Manufacturer No:

ISF15ACP4

Manufacturer:

NKK Switches

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

SW PROG DISPLAY SPST-NO 0.1A 12V

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 2870

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
NKK Switches ISF15ACP4 information

Specifications
Documents & Media
Product Comparison
Related Products
NKK Switches ISF15ACP4 technical specifications, attributes, parameters and parts with similar specifications to NKK Switches ISF15ACP4.
ParameterValue
Factory Lead Time 9 Weeks
Mount Through Hole
Mounting Type Through Hole
Manufacturer Package Identifier ISF15ACP4
ElectricalLife 1000000 Cycle(s)
Operating Temperature -20u00b0C~70u00b0C
Packaging Bulk
Published 2014
Series SmartDisplayu2122
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Pushbutton, OLED
Supply Voltage 2.4V~3.5VDC
Current Rating 100mA
Termination Style PC Pin
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 200mOhm
Insulation Resistance 100000000Ohm
Contact Current(DC)-Max 0.1A
Sealing EPOXY
Dielectric Withstanding Voltage 125VAC V
Throw Configuration SPST
Illumination LED
Contact Current Rating 100mA
Operating Force 204gf
Contact (DC) Max Rating R Load 0.1A@12VDC
Contact Rating @ Voltage 0.1A @ 12VDC
PCB Hole Count 14
Contact Function OFF-(ON)
Actuator Travel 1.778 mm
Solderability WAVE
Life (Cycles) 1e+06 cycles
Viewing Area 21.3mm L x 18.7mm W
Display Mode 65536 Colors, Passive Matrix
Travel Range 1.8mm
Pixel Format 96 x 64
Face Size 23.13mm Lx20.59mm W
Height 23mm
Length - Termination 0.13 inch
RoHS Status ROHS3 Compliant
Lead Free Lead Free
