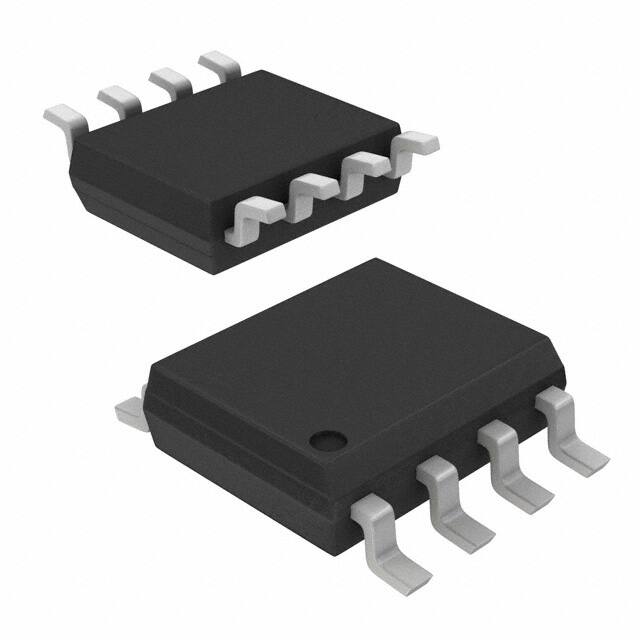

Infineon Technologies IRF7331PBF
Infineon Technologies IRF7331PBF thumbnail
Infineon Technologies IRF7331PBF thumbnail
FREE SAMPLE

Infineon Technologies IRF7331PBF

Infineon Technologies

Manufacturer No:

IRF7331PBF

Manufacturer:

Infineon Technologies

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

MOSFET 2N-CH 20V 7A 8-SOIC

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 11521

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Infineon Technologies IRF7331PBF information

Specifications
Documents & Media
Product Comparison
Related Products
Infineon Technologies IRF7331PBF technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies IRF7331PBF.
ParameterValue
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154, 3.90mm Width)
Surface Mount YES
Transistor Element Material SILICON
Current - Continuous Drain (Id) @ 25u2103 7A
Number of Elements 2
Operating Temperature -55u00b0C~150u00b0C TJ
Packaging Tube
Published 2004
Series HEXFETu00ae
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number IRF7331PBF
JESD-30 Code R-PDSO-G8
Qualification Status Not Qualified
Configuration SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE
Operating Mode ENHANCEMENT MODE
Power - Max 2W
FET Type 2 N-Channel (Dual)
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 30m u03a9 @ 7A, 4.5V
Vgs(th) (Max) @ Id 1.2V @ 250u03bcA
Input Capacitance (Ciss) (Max) @ Vds 1340pF @ 16V
Gate Charge (Qg) (Max) @ Vgs 20nC @ 4.5V
Drain to Source Voltage (Vdss) 20V
JEDEC-95 Code MS-012AA
Drain Current-Max (Abs) (ID) 7A
Drain-source On Resistance-Max 0.03Ohm
DS Breakdown Voltage-Min 20V
FET Technology METAL-OXIDE SEMICONDUCTOR
Power Dissipation-Max (Abs) 2W
FET Feature Logic Level Gate
RoHS Status ROHS3 Compliant
