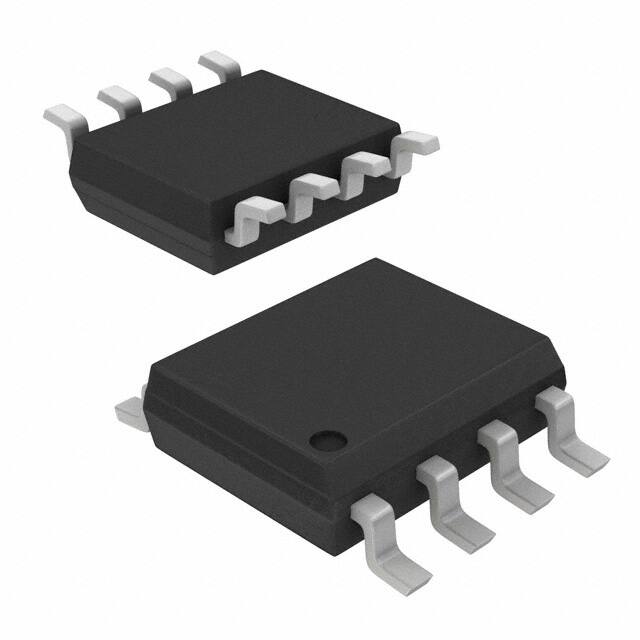

Infineon Technologies IRF7307TRPBF
Infineon Technologies IRF7307TRPBF thumbnail
Infineon Technologies IRF7307TRPBF thumbnail
FREE SAMPLE

Infineon Technologies IRF7307TRPBF

Infineon Technologies

Manufacturer No:

IRF7307TRPBF

Manufacturer:

Infineon Technologies

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

MOSFET N/P-CH 20V 8-SOIC

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 7

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Infineon Technologies IRF7307TRPBF information

Specifications
Documents & Media
Product Comparison
Related Products
Infineon Technologies IRF7307TRPBF technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies IRF7307TRPBF.
ParameterValue
Factory Lead Time 12 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154, 3.90mm Width)
Number of Pins 8
Transistor Element Material SILICON
Current - Continuous Drain (Id) @ 25u2103 5.2A 4.3A
Number of Elements 2
Turn Off Delay Time 51 ns
Operating Temperature -55u00b0C~150u00b0C TJ
Packaging Tape & Reel (TR)
Published 1997
Series HEXFETu00ae
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Resistance 50mOhm
Terminal Finish Matte Tin (Sn)
Additional Feature ULTRA LOW RESISTANCE
Max Power Dissipation 2W
Terminal Position DUAL
Terminal Form GULL WING
Current Rating 5.2A
Base Part Number IRF7307PBF
Operating Mode ENHANCEMENT MODE
Power Dissipation 2W
FET Type N and P-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 50m u03a9 @ 2.6A, 4.5V
Vgs(th) (Max) @ Id 700mV @ 250u03bcA
Input Capacitance (Ciss) (Max) @ Vds 660pF @ 15V
Gate Charge (Qg) (Max) @ Vgs 20nC @ 4.5V
Rise Time 26ns
Polarity/Channel Type N-CHANNEL AND P-CHANNEL
Fall Time (Typ) 33 ns
Continuous Drain Current (ID) 5.2A
Threshold Voltage 700mV
Gate to Source Voltage (Vgs) 12V
Drain to Source Breakdown Voltage 20V
FET Technology METAL-OXIDE SEMICONDUCTOR
FET Feature Logic Level Gate
Nominal Vgs 700 mV
Height 1.4986mm
Length 4.9784mm
Width 3.9878mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
