Home / All Products / Hall Pushbutton Switches / APEM Inc. IHSH36F2

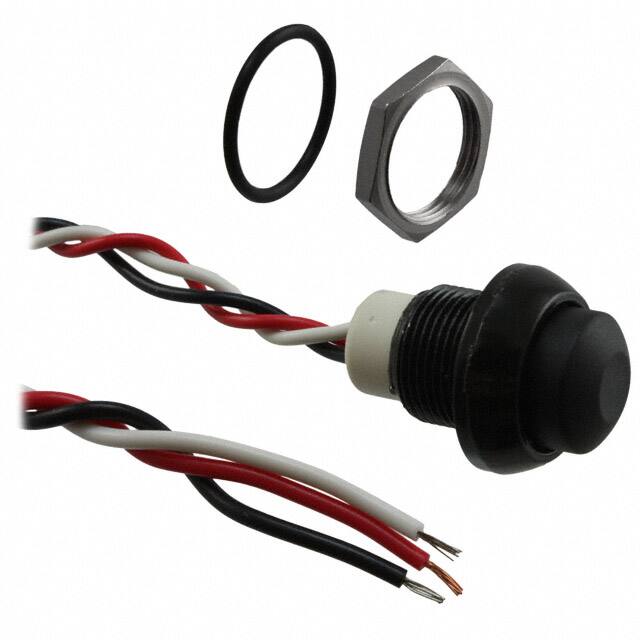

APEM Inc. IHSH36F2

APEM Inc.

Manufacturer No:

IHSH36F2

Manufacturer:

APEM Inc.

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

SWITCH PUSH HALL EFFECT 50MA 28V

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 50

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

APEM Inc. IHSH36F2 information

Specifications

Documents & Media

Product Comparison

Related Products

APEM Inc. IHSH36F2 technical specifications, attributes, parameters and parts with similar specifications to APEM Inc. IHSH36F2.

Parameter	Value
Factory Lead Time	9 Weeks
Mount	Front, Panel
Mounting Type	Panel Mount, Front
Housing Material	PBT
Actuator Material	POLYAMIDE
ActuatorColor	Black
Operating Temperature	-40u00b0C~85u00b0C
Packaging	Tray
Series	IH
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Wire Leads
ECCN Code	EAR99
Voltage - Rated DC	28V
Ingress Protection	IP67 - Dust Tight, Waterproof
Supply Voltage	3.5V~24VDC
Current Rating	50mA
Termination Style	Wire Leads
Voltage - Rated AC	28V
Actuator Type	Round Button
Max Output Current	50mA
Circuit	Single
Switch Function	Off-Mom
Contact Current(DC)-Max	0.05A
Contact Voltage(DC)-Max	24V
Nominal Supply Current	5mA
Throw Configuration	SPST
Max Output Voltage	28V
Switch Type	PUSHBUTTON SWITCH
Operating Force	612gf
Illumination Type	Illuminated
Contact (DC) Max Rating R Load	0.05A@24VDC
Actuator Travel	1.778 mm
Travel Range	1.7mm
Supply Current	Varies by Supply Voltage
Actuator Length	0.381 inch
RoHS Status	ROHS3 Compliant
Ratings	Dust Tight, IP67, Waterproof
