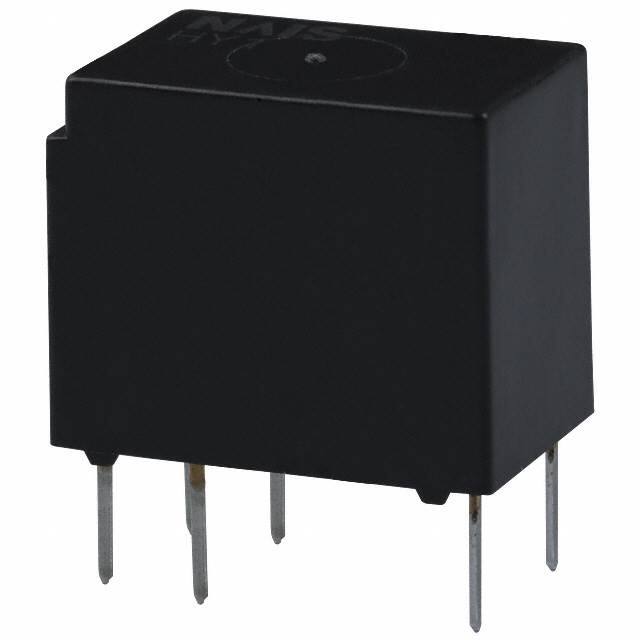

Panasonic Electric Works HY1-5V

Panasonic Electric Works

Manufacturer No:

HY1-5V

Manufacturer:

Panasonic Electric Works

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

RELAY TELECOM SPDT 1A 5VDC

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 375

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

Panasonic Electric Works HY1-5V information

Specifications

Documents & Media

Product Comparison

Related Products

Panasonic Electric Works HY1-5V technical specifications, attributes, parameters and parts with similar specifications to Panasonic Electric Works HY1-5V.

Parameter	Value
Factory Lead Time	10 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	DIP
Number of Pins	6
Weight	1.8g
CoilResistance	166Ohm
Contact Materials	Silver (Ag), Gold (Au)
ElectricalLife	100000 Cycle(s)
Operating Temperature	-40u00b0C~70u00b0C
Packaging	Tube
Published	2004
Series	HY
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
Termination	PC Pin
ECCN Code	EAR99
Terminal Finish	Silver/Gold (Ag/Au)
Voltage - Rated DC	60V
Depth	7.4mm
Reference Standard	CSA; UL
Termination Style	PC Pin
Physical Dimension	12mm x 7.4mm x 10.1mm
Contact Resistance	100mOhm
Insulation Resistance	100000000Ohm
Contact Current(DC)-Max	1A
Max Current Rating	1A
Throw Configuration	SPDT
Max Voltage Rating (DC)	60V
Contact Form	SPDT (1 Form C)
Relay Type	Telecom
Contact (AC) Max Rating R Load	1A@30VDC
Operate Time	5ms
Coil Voltage	5VDC
Coil Type	Non Latching
Switching Voltage	60VDC -Max
Coil Current	30mA
Release Time	4ms
Contact (DC) Max Rating R Load	1A@30VDC
Must Operate Voltage	3.75VDC
Power Consumption	150mW
Coil Power	150mW
Must Release Voltage	0.5VDC
Contact/Output Supply Type	DC
Relay Action	MOMENTARY
Coil Voltage (DC)	5V
Coil/Input Supply Type	DC
PCB Hole Count	6
Seal Rating	Sealed - Fully
Dielectric Strength Between Open Contacts	500 Vrms
Input Switching Control Type	Random
Dielectric Strength Between Coil and Contacts	1000 Vrms
Length	12mm
Body Height	10.1mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free
