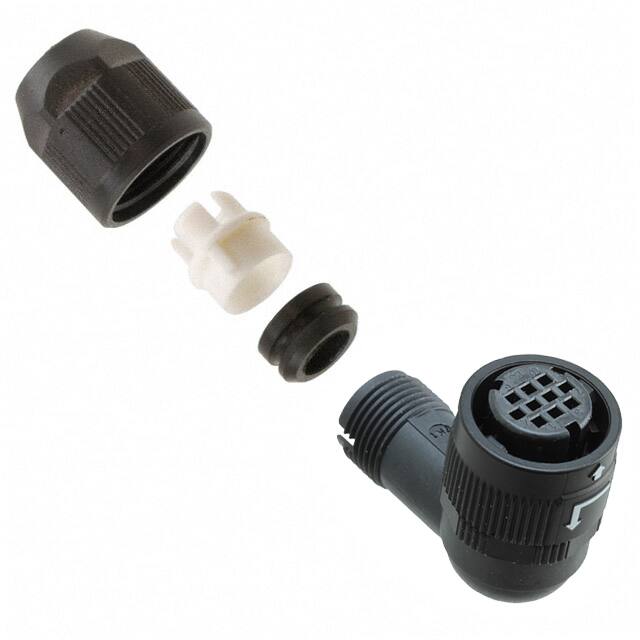

Hirose Electric Co Ltd HR34B-12WLPD-10SC
Hirose Electric Co Ltd HR34B-12WLPD-10SC thumbnail
Hirose Electric Co Ltd HR34B-12WLPD-10SC thumbnail
FREE SAMPLE

Hirose Electric Co Ltd HR34B-12WLPD-10SC

Hirose Electric Co Ltd

Manufacturer No:

HR34B-12WLPD-10SC

Manufacturer:

Hirose Electric Co Ltd

Cybertant No:

-

Package:

-

Datasheet:

Datasheet

ECAD Model:

-

Description:

Standard Circular Connector 10P R/A CRIMP PLUG FEMALE CONT

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 41

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Hirose Electric Co Ltd HR34B-12WLPD-10SC information

Specifications
Documents & Media
Product Comparison
Related Products
Hirose Electric Co Ltd HR34B-12WLPD-10SC technical specifications, attributes, parameters and parts with similar specifications to Hirose Electric Co Ltd HR34B-12WLPD-10SC.
ParameterValue
Factory Lead Time 10 Weeks
Lifecycle Status -
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Package / Case -
Mounting Feature -
Number of Pins -
Contact Shape Circular
Shell Material Zinc Alloy
Housing Material Aluminium
Insert Material Polyphenylene Sulfide (PPS)
Body Material Polyphenylene
Contact Finish Mating TIN
Contact Materials Bronze
Contact Sizes -
Insulation Materials -
Voltage Rated 250V
Operating Temperature -25u00b0C~125u00b0C
Packaging Tray
Published 2008
Series HR34B
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination -
ECCN Code -
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 10
Max Operating Temperature -
Min Operating Temperature -
Color -
Gender Male
Additional Feature -
HTS Code -
Fastening Type Bayonet Lock
Voltage - Rated DC -
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Crimp
Mixed Contacts NO
Option -
Total Number of Contacts 10
Orientation N (Normal)
Shielding Unshielded
Ingress Protection IP67/68 - Dust Tight, Waterproof
Reach Compliance Code unknown
Current Rating 3A
Shell Finish Chrome
Reference Standard -
Shell Size - Insert 12
Voltage - Rated AC -
Reliability -
Body Length or Diameter -
Number of Contacts -
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth -
Contact Gender Female
Housing Color Black
Empty Shell NO
Body Depth -
Rated Current (Signal) -
Contact Resistance -
Insulation Resistance -
Note Contacts Not Included
Max Current Rating -
Plating Chromate
Polarization Key -
Dielectric Withstanding Voltage -
Number of Ports -
Wire Gauge (Max) -
Wire Gauge (Min) -
Durability -
Wire/Cable Gauge -
Contact Finish Termination TIN
Wire/Cable Diameter 6.5 mm
Includes -
Hole Diameter -
Hybrid Connector -
Polarized -
Serviceable -
Mains Connector Rating -
Features Backshell, Coupling Nut, Rotatable, Strain Relief
Height -
Length -
Material Flammability Rating UL94 V-0
Radiation Hardening -
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free -
Ratings Dust Tight, IP67, Waterproof
