Home / All Products / Bridge Rectifiers / Diodes Incorporated GBU406

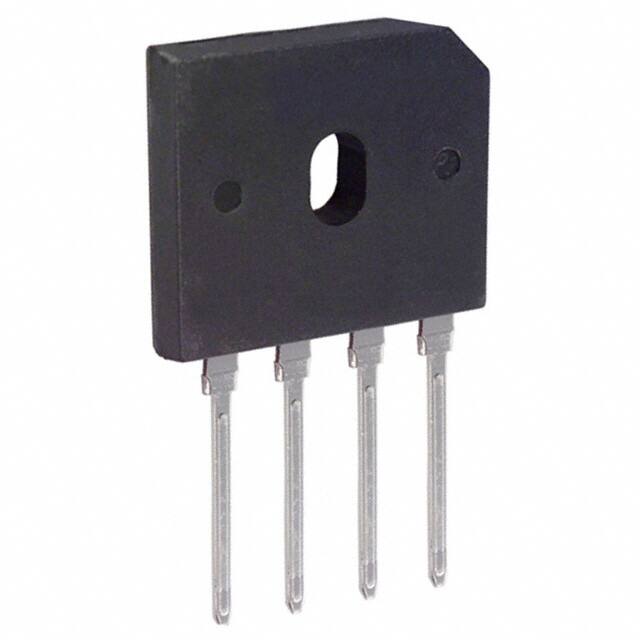

Diodes Incorporated GBU406

Diodes Incorporated

Manufacturer No:

GBU406

Manufacturer:

Diodes Incorporated

Cybertant No:

Package:

Datasheet:

ECAD Model:

Description:

BRIDGE RECT 1PHASE 600V 4A GBU

Quantity:

Unit Price: -

Ext Price: -

Delivery:

Payment:

In Stock : 460

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry

Package

Shipping Information

Shopping Manual

Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport

Step1：Prepare product
Step2：Vacuum packaging
Step3：Anti-static bag
Step4：Individual package
Step5：Packaging box
Step6：Barcode shipping label

Cybertant How to Login and Register Online

Cybertant How to Place an Order

Cybertant How to Request for Quote

Cybertant How to Use Manufacturers Page

Cybertant How to Use My Account

Diodes Incorporated GBU406 information

Specifications

Documents & Media

Product Comparison

Related Products

Diodes Incorporated GBU406 technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated GBU406.

Parameter	Value
Factory Lead Time	9 Weeks
Mount	Surface Mount, Through Hole
Mounting Type	Through Hole
Package / Case	4-SIP, GBU
Number of Pins	4
Weight	3.404012g
Diode Element Material	SILICON
Number of Elements	1
Operating Temperature	-55u00b0C~150u00b0C TJ
Packaging	Tube
Published	2006
JESD-609 Code	e3
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	4
Termination	Through Hole
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Additional Feature	UL RECOGNIZED
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	GBU406
Pin Count	4
Element Configuration	Single
Diode Type	Single Phase
Current - Reverse Leakage @ Vr	5u03bcA @ 600V
Voltage - Forward (Vf) (Max) @ If	1V @ 2A
Case Connection	ISOLATED
Forward Current	4A
Max Surge Current	150A
Output Current-Max	4A
Forward Voltage	1V
Average Rectified Current	4A
Number of Phases	1
Peak Reverse Current	5u03bcA
Max Repetitive Reverse Voltage (Vrrm)	600V
Peak Non-Repetitive Surge Current	150A
Max Forward Surge Current (Ifsm)	150A
Reverse Voltage (DC)	420V
Height	18.8mm
Length	22.3mm
Width	3.56mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
