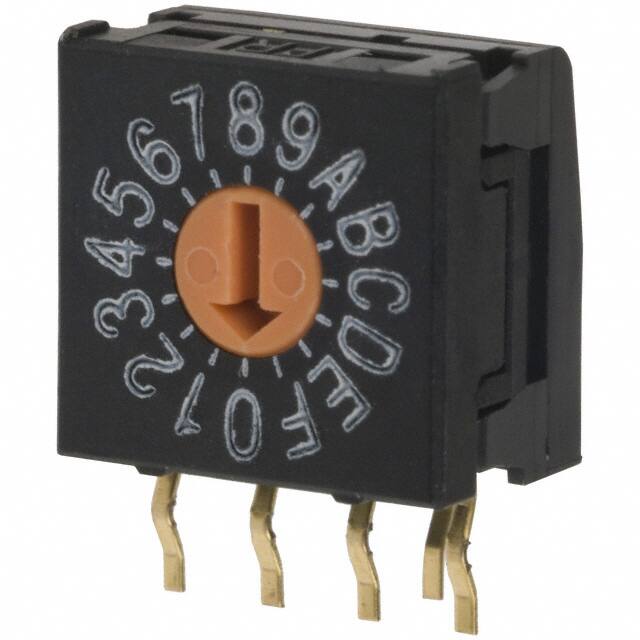

NKK Switches FR01FR16H-S
NKK Switches FR01FR16H-S thumbnail
NKK Switches FR01FR16H-S thumbnail
FREE SAMPLE

NKK Switches FR01FR16H-S

NKK Switches

Manufacturer No:

FR01FR16H-S

Manufacturer:

NKK Switches

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

SWITCH ROTARY DIP HEX 100MA 5V

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 3405

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
NKK Switches FR01FR16H-S information

Specifications
Documents & Media
Product Comparison
Related Products
NKK Switches FR01FR16H-S technical specifications, attributes, parameters and parts with similar specifications to NKK Switches FR01FR16H-S.
ParameterValue
Factory Lead Time 9 Weeks
Mount PCB, Through Hole
Mounting Type Through Hole, Right Angle
Material PVC
Housing Material Nylon
Body Material Polyamide (PA), Nylon, Glass Filled
ActuatorColor ORANGE
Contact Materials Copper Alloy
ElectricalLife 10,000 Steps
Voltage Rated 5VDC
Operating Temperature -25u00b0C~85u00b0C
Packaging Tube
Published 2009
Series FR01
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
ECCN Code EAR99
Number of Positions 16
HTS Code 8536.50.90.20
Voltage - Rated DC 5V
Pitch 0.100 2.54mm Full
Orientation Right Angle
Depth 6.55mm
Current Rating 100mA
Contact Finish Gold
Termination Style PC Pin
Actuator Type Rotary for Tool
Circuit Hexadecimal
Insulation Resistance 1GOhm
Contact Voltage(DC)-Max 5V
Max Current Rating 100mA
Dielectric Withstanding Voltage 250VAC V
Number of Poles 1
Throw Configuration SP16T
Mechanical Life 10,000 Steps
Switch Type ROTARY CODED SWITCH
Illumination Type Illuminated
Contact Timing BREAK-BEFORE-MAKE
Index Angle 22.5 deg
PCB Hole Count 3
Washable No
Actuator Level Flush, Recessed
Length 0.393 10.00mm
Body Height 6.5532mm
Height Above Board 0.394 10.00mm
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
