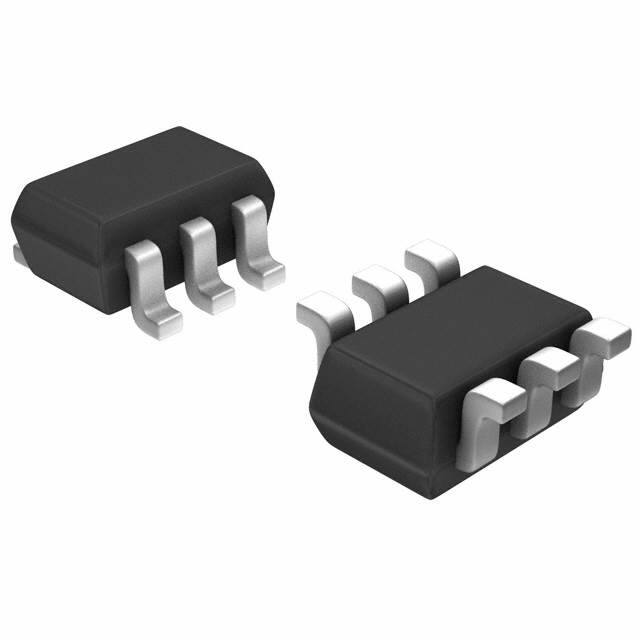

ON Semiconductor FDG6332C
ON Semiconductor FDG6332C thumbnail
ON Semiconductor FDG6332C thumbnail
FREE SAMPLE

ON Semiconductor FDG6332C

ON Semiconductor

Manufacturer No:

FDG6332C

Manufacturer:

ON Semiconductor

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

ON SEMICONDUCTOR - FDG6332C - Dual MOSFET, N and P Channel, 700 mA, 20 V, 0.18 ohm, 4.5 V, 1.1 V

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 15904

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
ON Semiconductor FDG6332C information

Specifications
Documents & Media
Product Comparison
Related Products
ON Semiconductor FDG6332C technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FDG6332C.
ParameterValue
Factory Lead Time 10 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-TSSOP, SC-88, SOT-363
Number of Pins 6
Transistor Element Material SILICON
Current - Continuous Drain (Id) @ 25u2103 700mA 600mA
Number of Elements 2
Turn Off Delay Time 6 ns
Operating Temperature -55u00b0C~150u00b0C TJ
Packaging Tape & Reel (TR)
Published 2017
Series PowerTrenchu00ae
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Resistance 300MOhm
Max Power Dissipation 300mW
Terminal Form GULL WING
Current Rating 700mA
Voltage 20V
Element Configuration Dual
Current 7A
Operating Mode ENHANCEMENT MODE
Power Dissipation 300mW
FET Type N and P-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 300m u03a9 @ 700mA, 4.5V
Vgs(th) (Max) @ Id 1.5V @ 250u03bcA
Input Capacitance (Ciss) (Max) @ Vds 113pF @ 10V
Gate Charge (Qg) (Max) @ Vgs 1.5nC @ 4.5V
Rise Time 14ns
Polarity/Channel Type N-CHANNEL AND P-CHANNEL
Fall Time (Typ) 14 ns
Continuous Drain Current (ID) 700mA
Threshold Voltage 1.1V
Gate to Source Voltage (Vgs) 12V
Drain to Source Breakdown Voltage 20V
FET Technology METAL-OXIDE SEMICONDUCTOR
Max Junction Temperature (Tj) 150u00b0C
FET Feature Logic Level Gate
Height 1.1mm
Length 2mm
Width 1.25mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free

No documents or media available for this product.

The three parts on the right have similar specifications to ON Semiconductor FDG6332C.

No similar products have been configured yet.
