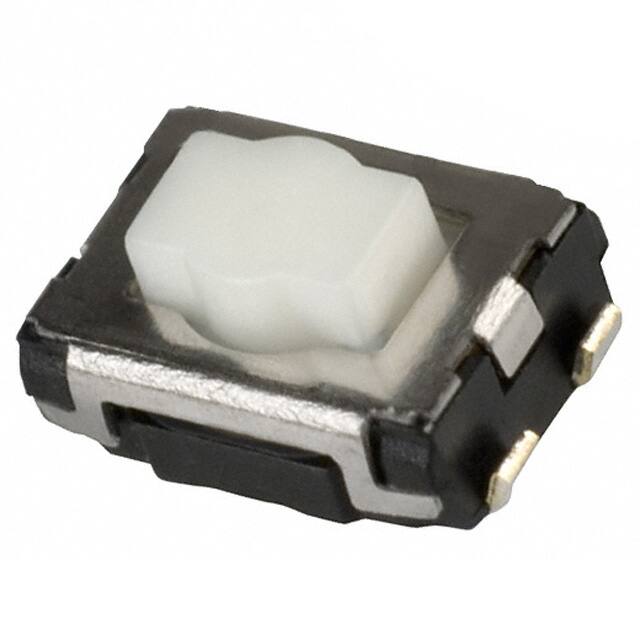

Panasonic Electronic Components EVQ-P2202M
Panasonic Electronic Components EVQ-P2202M thumbnail
Panasonic Electronic Components EVQ-P2202M thumbnail
FREE SAMPLE

Panasonic Electronic Components EVQ-P2202M

Panasonic Electronic Components

Manufacturer No:

EVQ-P2202M

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

SWITCH TACTILE SPST-NO 0.02A 15V

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 6000

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Panasonic Electronic Components EVQ-P2202M information

Specifications
Documents & Media
Product Comparison
Related Products
Panasonic Electronic Components EVQ-P2202M technical specifications, attributes, parameters and parts with similar specifications to Panasonic Electronic Components EVQ-P2202M.
ParameterValue
Factory Lead Time 6 Weeks
Contact Plating Gold, Silver
Mount Surface Mount
Mounting Type Surface Mount
ElectricalLife 1e+06 cycles
Operating Temperature -40u00b0C~85u00b0C
Packaging Tape & Reel (TR)
Published 2012
Series EVQP2
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination J-Bend
ECCN Code EAR99
Terminal Finish GOLD/SILVER
Color Natural
HTS Code 8536.50.90.40
Voltage - Rated DC 15V
Packing Method BOX; TAPE AND REEL
Orientation Straight
Depth 5.5mm
Current Rating 20mA
Termination Style J Lead
Actuator Type Rectangular Button
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 100mOhm
Contact Current(DC)-Max 0.02A
Max Current Rating 20mA
Throw Configuration SPST
Illumination Non-Illuminated
Max Voltage Rating (DC) 15V
Mechanical Life 1,000,000 Cycles
Switch Type KEYPAD SWITCH
Contact Current Rating 20mA
Operating Force 160gf
Illumination Type Illuminated, Non-Illuminated
Actuator Orientation Top Actuated
Contact (DC) Max Rating R Load .02A@15VDC
Outline 4.70mm x 3.50mm
Contact Rating @ Voltage 0.02A @ 15VDC
Switch Travel 0.25mm
Actuator Height off PCB, Vertical 2.10mm
Number of Switches 1
Contact Bounce Time-Max 10ms
Height 2.1mm
Length 3.5mm
Actuator Length 450u03bcm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
