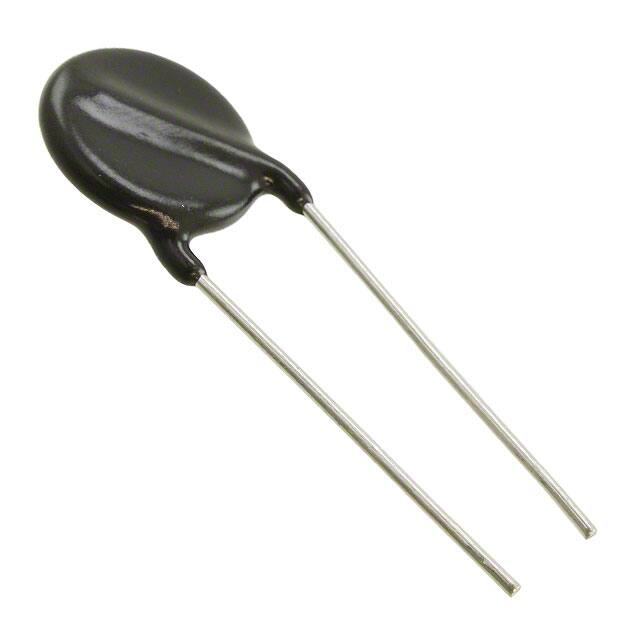

Panasonic Electronic Components ERZ-E14A241
Panasonic Electronic Components ERZ-E14A241 thumbnail
Panasonic Electronic Components ERZ-E14A241 thumbnail
FREE SAMPLE

Panasonic Electronic Components ERZ-E14A241

Panasonic Electronic Components

Manufacturer No:

ERZ-E14A241

Cybertant No:

-

Package:

-

Datasheet:

-

ECAD Model:

-

Description:

VARISTOR 240V 10KA DISC 16.5MM

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 54

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Panasonic Electronic Components ERZ-E14A241 information

Specifications
Documents & Media
Product Comparison
Related Products
Panasonic Electronic Components ERZ-E14A241 technical specifications, attributes, parameters and parts with similar specifications to Panasonic Electronic Components ERZ-E14A241.
ParameterValue
Factory Lead Time 17 Weeks
Contact Plating Tin
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Disc 16.5mm
Operating Temperature -40u00b0C~85u00b0C TA
Packaging Bulk
Published 2013
Series ZNRu00ae
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Capacitance 1.1nF
Voltage - Rated DC 200V
Depth 5.4mm
Resistor Type VARISTOR
Voltage - Rated AC 150V
Lead Pitch 10mm
Number of Circuits 1
Max Supply Voltage 150V
Max Voltage Rating (AC) 150V
Max Voltage Rating (DC) 200V
Lead/Base Style Radial
Clamping Voltage 395V
Max Surge Current 10kA
Capacitance @ Frequency 1100pF @ 1kHz
Voltage Tolerance 10%
Varistor Voltage (Max) 264V
Energy 168J
Varistor Voltage (Min) 216V
Varistor Voltage (Typ) 240V
ESD Protection No
Varistor Voltage 240V
Current - Surge 10kA
Clamping Current 100A
Diameter 16.5mm
Width 5.4mm
Thickness 5.3mm
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
