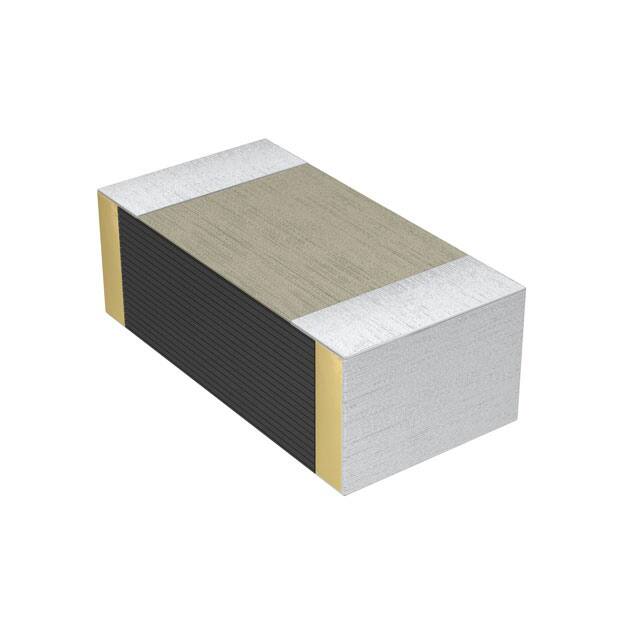

Panasonic Electronic Components ECH-U1H103GX5
Panasonic Electronic Components ECH-U1H103GX5 thumbnail
Panasonic Electronic Components ECH-U1H103GX5 thumbnail
FREE SAMPLE

Panasonic Electronic Components ECH-U1H103GX5

Panasonic Electronic Components

Manufacturer No:

ECH-U1H103GX5

Cybertant No:

-

Package:

-

Datasheet:

Datasheet

ECAD Model:

-

Description:

CAP FILM 10000PF 2% 50VDC 1206

Quantity:

Unit Price: -

Ext Price: -

Delivery:

DHL TNT UPS FedEx SF Express

Payment:

PayPal Visa Discover Mastercard

Certification Certification Certification Certification Certification Certification Certification

In Stock : 62850

Minimum: 1 Multiples: 1

Want a lower wholesale price? Please send RFQ, we will respond immediately.

RFQ Now

Add to RFQ list

User Guide

Purchase & Inquiry
Package
Shipping Information
Shopping Manual
Purchase

You may place an order without registering to Cybertant.
We strongly suggest you sign in before purchasing as you can track your order in real time.

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You'll receive an order information email in your inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping Cost

Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and country.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

Delivery Time

Once the goods are shipped, estimated delivery time depends on the shipping methods you chose:

FedEx International, 5-7 business days.

The following are some common countries' logistic time. transport
  • Prepare productStep1:Prepare product
  • Vacuum packagingStep2:Vacuum packaging
  • Anti-static bagStep3:Anti-static bag
  • Individual packageStep4:Individual package
  • Packaging boxStep5:Packaging box
  • Barcode shipping labelStep6:Barcode shipping label
Panasonic Electronic Components ECH-U1H103GX5 information

Specifications
Documents & Media
Product Comparison
Related Products
Panasonic Electronic Components ECH-U1H103GX5 technical specifications, attributes, parameters and parts with similar specifications to Panasonic Electronic Components ECH-U1H103GX5.
ParameterValue
Factory Lead Time 8 Weeks
Contact Plating Copper, Silver, Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Material Ceramic
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Weight -
Mfr -
Package -
Product Status -
Voltage Rated -
Voltage Rating DC -
Operating Temperature -55u00b0C~125u00b0C
Packaging Tape & Reel (TR)
Published 2008
Series ECH-U(X)
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance u00b12%
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Type -
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Max Operating Temperature -
Min Operating Temperature -
Applications General Purpose
Additional Feature -
HTS Code -
Capacitance 10000pF
Voltage - Rated DC 50V
Packing Method TR, EMBOSSED, 7 INCH
Depth 1.6mm
Reference Standard -
Voltage - Rated AC 50V
Case Code (Metric) 3216
Case Code (Imperial) 1206
Lead Pitch -
Capacitor Type FILM CAPACITOR
Lead Length -
Dielectric PPS
Lead Spacing -
Multilayer No
Insulation Resistance 3GOhm
Rated (DC) Voltage (URdc) -
Lead Diameter -
Size Code 1306
Voltage 50V
Life (Hours) 500 hours
Dissipation Factor 0.6 %
Lead/Base Style -
Features -
Height 1.1mm
Height Seated (Max) 0.051 1.30mm
Length -
Width -
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating -
Lead Free Lead Free
Ratings -
